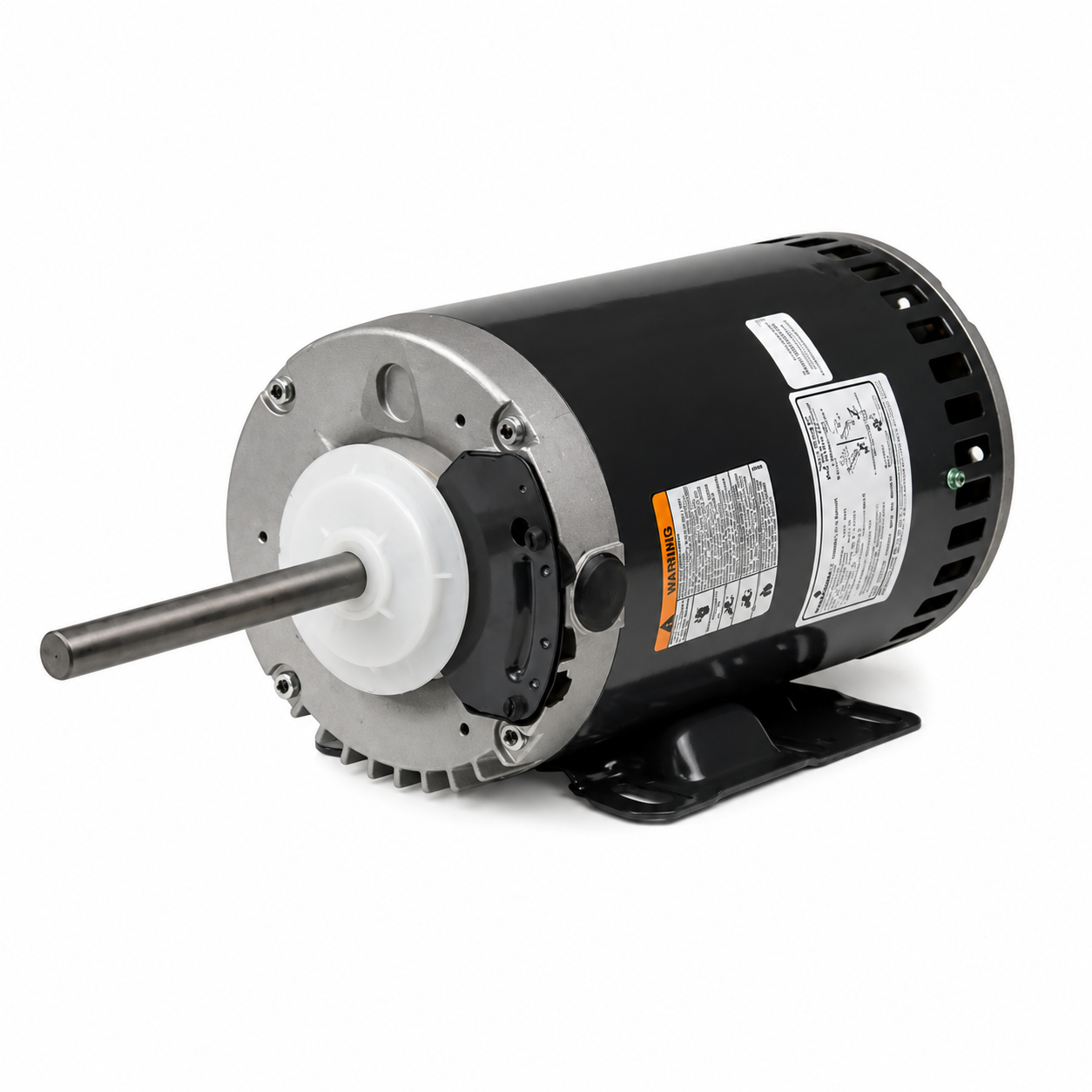

US Motors Condenser Fan Motors (HVAC/R) 1140 - 2 HP - 575 V - 1140 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 1140 - 2 HP - 575 V - 1140 RPM - Three phase

$625.00 CAD
$625.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1140

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 2 HP

RPM : 1140

Voltage : 575 V

Phase : Three

Frame : 56Y

Mounting : Rigid Base

• HP : 2
• Voltage : 575
• RPM : 1140
• Current (Amp) : 2.80
• Phase : 3
• Rotation : Reversible
• Frame : 56Y
• Enclosure : Open Air Over
• Speeds : 1
• Protector : Automatic
• Ambient Temp : 60°C
• Service Factor : 1.00
• Shaft Dimensions : 0.625 in X 4.50 in
• Frequency : 60Hz
• Diameter : 6.5 in
• Frame Length : 16.76 in
• Bearings : Ball
• Features : Class B Insulation, Rigid Base Mount, 5/8" Diameter Shaft With Flat And Keyed
• Reference : Cancoil MA1074, Emerson P63ZZFHU1608 P63ZZGDY4845, Marathon 56T1105537, SA70136
