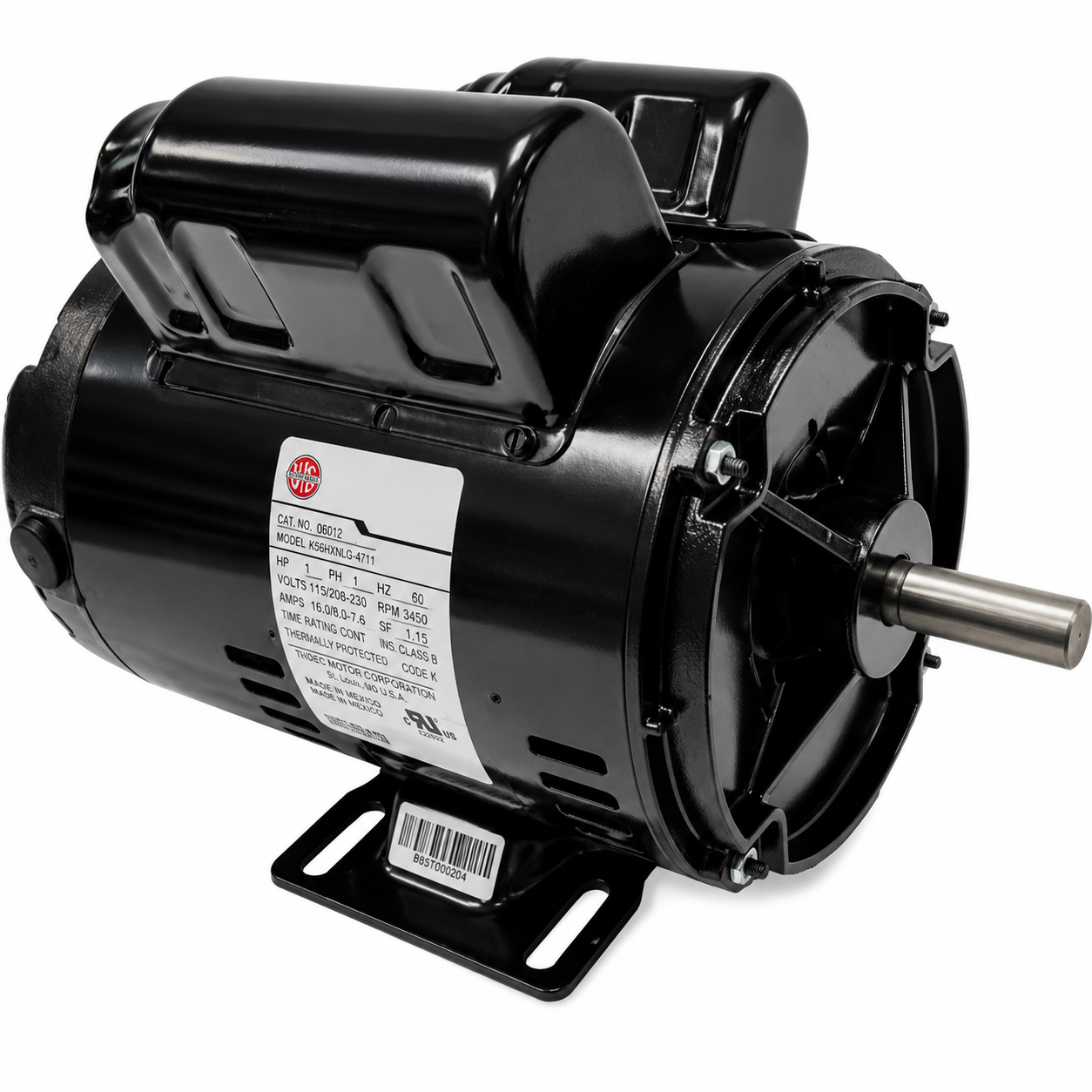

US Motors Air Compressor Motor 3768 - 2 HP - 115/230 V - 3450 RPM - Single phase

US Motors Air Compressor Motor 3768 - 2 HP - 115/230 V - 3450 RPM - Single phase

$406.00 CAD
$406.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3768

Brand : US Motors

HVAC : Air Compressor Motor

Horsepower : 2 HP

RPM : 3450

Voltage : 115/230 V

Phase : Single

Frame : 56

Mounting : Rigid Base

  • Horsepower :2
  • Voltage :115/230
  • Amps :15.0/7.5
  • RPM :3450
  • Frequency :60 Hz
  • "C" Dim. :11.94"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :5/8" x 1.94"
  • Type :Capacitor Start/Capacitor Run
  • Speeds :1
  • Diameter :6.5"
  • Frame :56
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Manual
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Rigid Base
  • Weight (lbs.) :28
  • Reference : Century B381, Emerson KS63XBZD2032 T63BXBPM1039, General Electric 5KCR49TN2699
