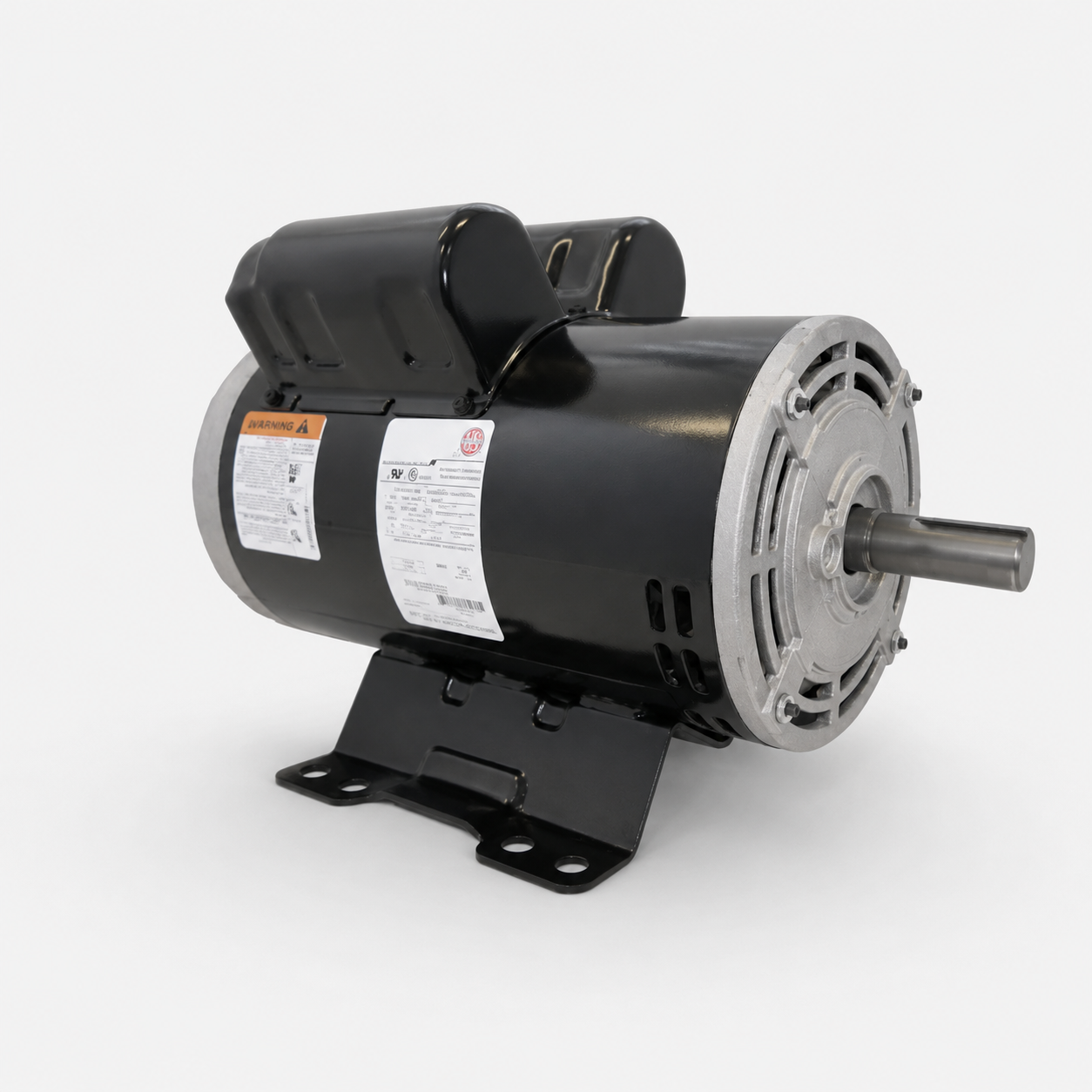

US Motors Air Compressor Motor EB384 - 5 HP - 230 V - 3450 RPM - Single phase

US Motors Air Compressor Motor EB384 - 5 HP - 230 V - 3450 RPM - Single phase

$663.00 CAD
$663.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EB384

Brand : US Motors

Horsepower : 5 HP

RPM : 3450

Voltage : 230 V

Phase : Single

Frame : 56HZ

Mounting : Rigid Base

  • HP : 5
  • Voltage : 230
  • RPM : 3450
  • Current (Amp) : 21.50
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : 56HZ
  • Enclosure : Open Drip Proof
  • Speeds : 1
  • Protector : Manual
  • Ambient Temp : 40°C
  • Service Factor : 1.15
  • Shaft Dimensions : 0.875 in X 2.36 in
  • Frequency : 60Hz
  • Diameter : 6.5 in
  • Frame Length : 14.97 in
  • Bearings : Ball
  • Capacitor Rating : 50-370
  • Features : Class F Insulation, Special Rigid Base Mount, Shaft Height 4-1/2", 7/8" Diameter Keyed Shaft
  • Reference : Century B384, Emerson T63VCJW2054, 2320064
