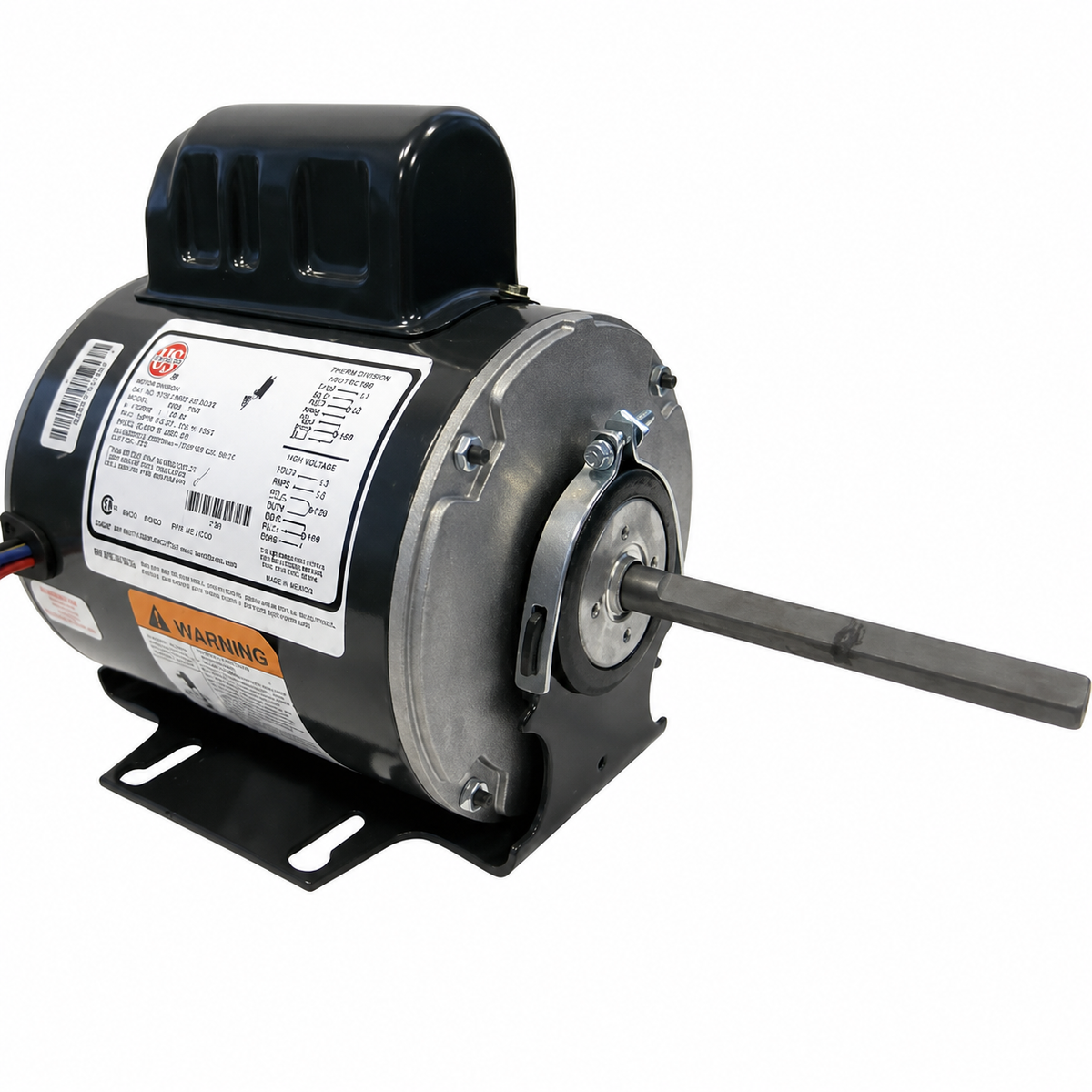

US Motor Fan & Blower Motors (HVAC/R) 1255 - 1/4 HP - 115/230 V - 1725 RPM - Single phase

US Motor Fan & Blower Motors (HVAC/R) 1255 - 1/4 HP - 115/230 V - 1725 RPM - Single phase

$287.00 CAD
$287.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1255

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Horsepower :1/4
  • Voltage :115/230
  • Amps :2.50/1.30
  • RPM :1725
  • Frequency :60 Hz
  • Enclosure :Totally Enclosed, Air Over
  • Shaft Dim. :1/2" x 5.00"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :1
  • Feature(s) :Resilient Base
  • Weight (lbs.) :17

  • Reference : A.O.Smith F48Y36A01, Century C042A 767A (Longer Shaft), Emerson K55HXTN-888 K55HXRJL1991 K055RJL1991012B K55HXSNS1255, General Electric 3J53FAX11 5KCP39GGN380
