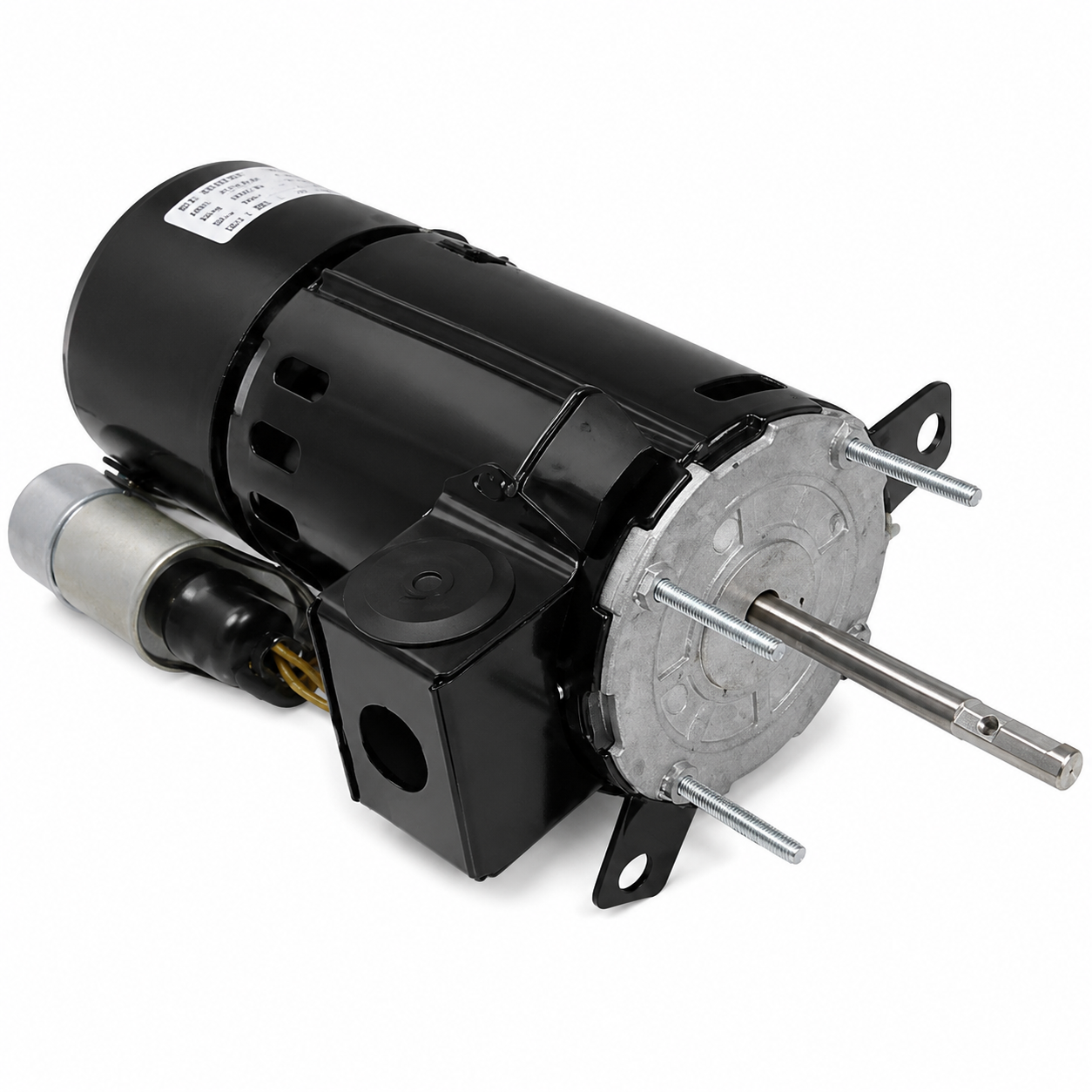

Emotortek OEM Replacement Motors (HVAC/R) UFM410 - 1/10 HP - 115/230 V - 3000 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) UFM410 - 1/10 HP - 115/230 V - 3000 RPM - Single phase

$245.00 CAD
$245.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : UFM410

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 3000

Voltage : 115/230 V

Phase : Single

Frame : 42

Mounting : Bracket Mount

  • Horsepower : 1/10
  • Amps : 1.40 / 0.70
  • Frequency : 60 Hz
  • Length : 6-31/32”
  • Enclosure : Open
  • Shaft Dim. : 1/4" x 3-23/32”
  • Type : Permanent Split Capacitor
  • Diameter : 3.3”
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Feature(s) : Class ‘B’ Insulation, Conduit Box, 3 Mounting Lugs, Stainless Steel Shaft 1/4” to 5/16” Bushing
  • Weight (lbs.) : 6
