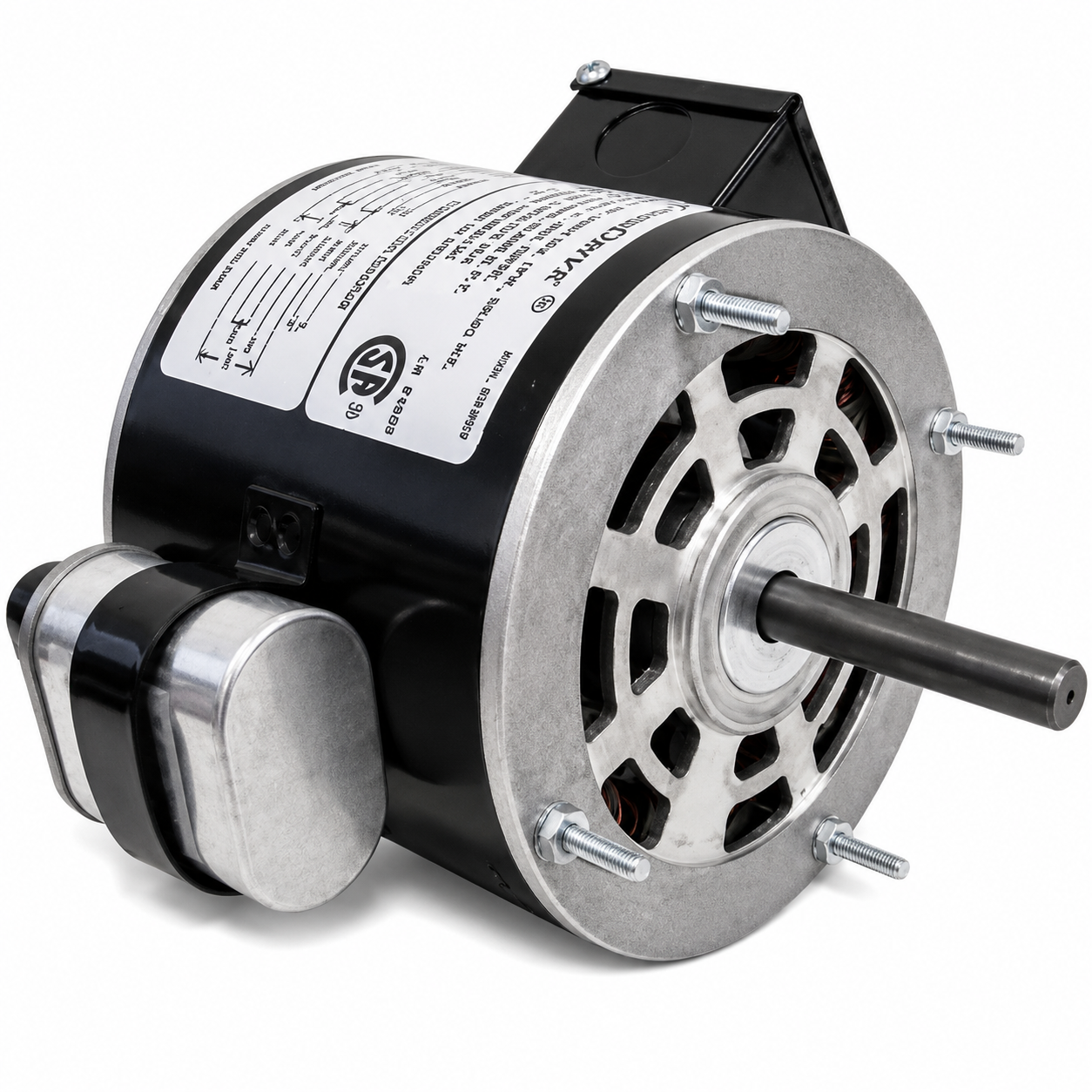

Emotortek OEM Replacement Motors (HVAC/R) SS800 - 1/2 HP - 115/230 V - 1625 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS800 - 1/2 HP - 115/230 V - 1625 RPM - Single phase

$402.00 CAD
$402.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS800

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1625

Voltage : 115/230 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/2
  • Amps : 2.90/5.10
  • Frequency : 50/60 Hz
  • Length : 4-1/2"
  • "C" Dim. : 7-1/8"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 2-5/8"
  • Type : Permanent Split Capacitor
  • Speeds : 2
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Dock Seal Blower Motor, Class 'B' Insulation, Thru-Bolts, Capacitor & C-Box Included
  • Weight (lbs.) : 15
  • Reference : 7818852, Universal Electric HE2H122 HE2H122N, A.O. Smith F48AB73E09, 448-154/8
