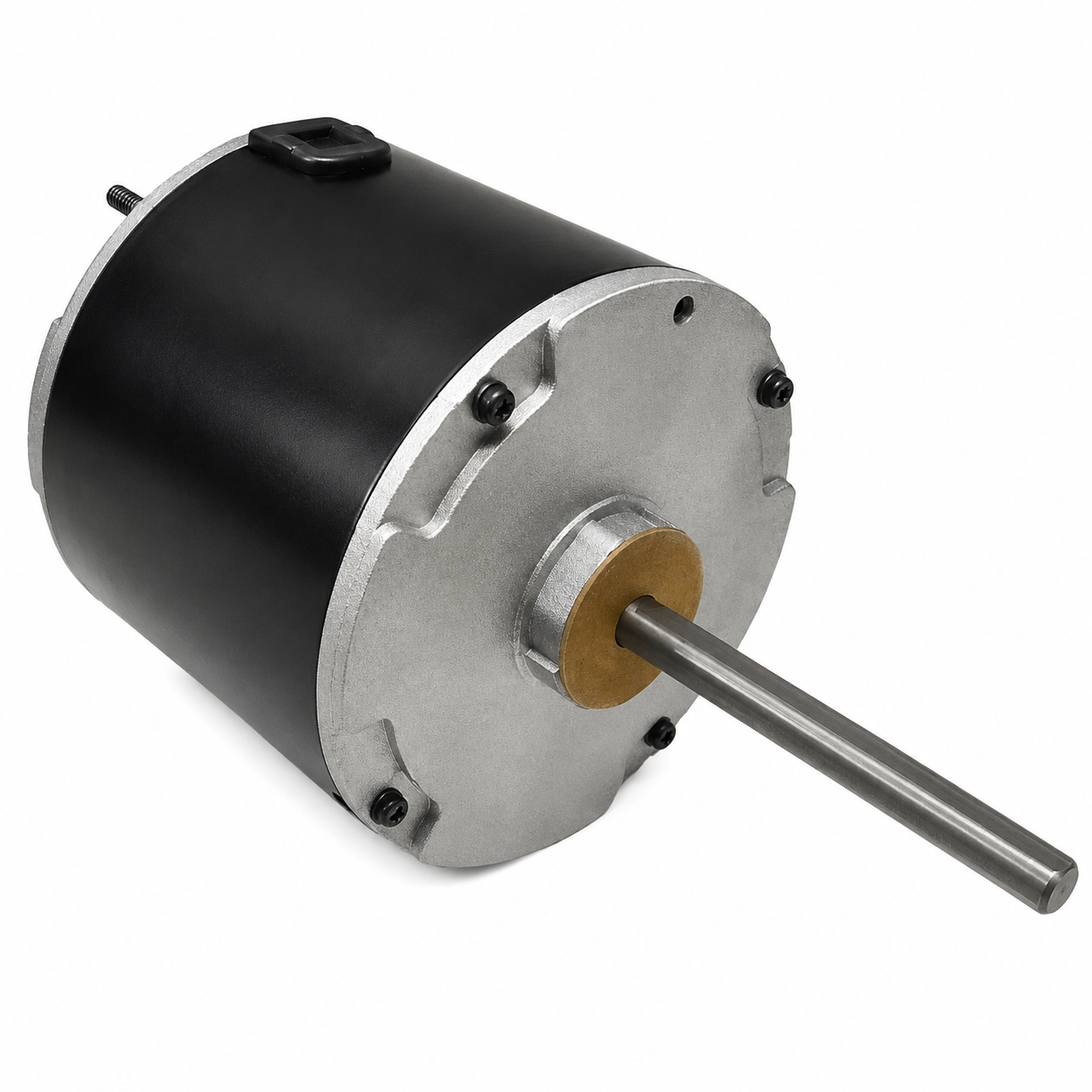

Emotortek Condenser Fan Motors (HVAC/R) SS7405 - 1/3 HP - 208/230 V - 825 RPM - Single phase

Emotortek Condenser Fan Motors (HVAC/R) SS7405 - 1/3 HP - 208/230 V - 825 RPM - Single phase

$245.00 CAD
$245.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS7405

Brand : Emotortek

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/3
  • Amps : 1.80
  • Frequency : 60 Hz
  • Length : 5-1/8"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2" x 6"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 70°C
  • Feature(s) : No Base, Class 'F' Insulation, Thru Bolts Included
  • Weight (lbs.) : 14
  • Reference : A.O. Smith F48AE71A01 F48B65A01 F48T70A50, Century EM3405F FE1038SF FSE1038SF, Emerson K55HXBVK1709 K55HXCBW9555 K55HXCBW9585 K55HXFDH7740 K55HXLFE5776 K55HXSWT7963, Fasco Catalogue D791, General Electric 3205, Marathon 48A8T72 Marathon Catalogue No. X086, Rotom CF-813 CF-9622 R22345, Universal Electric HE4K007, Universal Electric Stock No. 740, CK48VS21J99, YDK140/55-8-245A1, YY180-140806PH01-003
