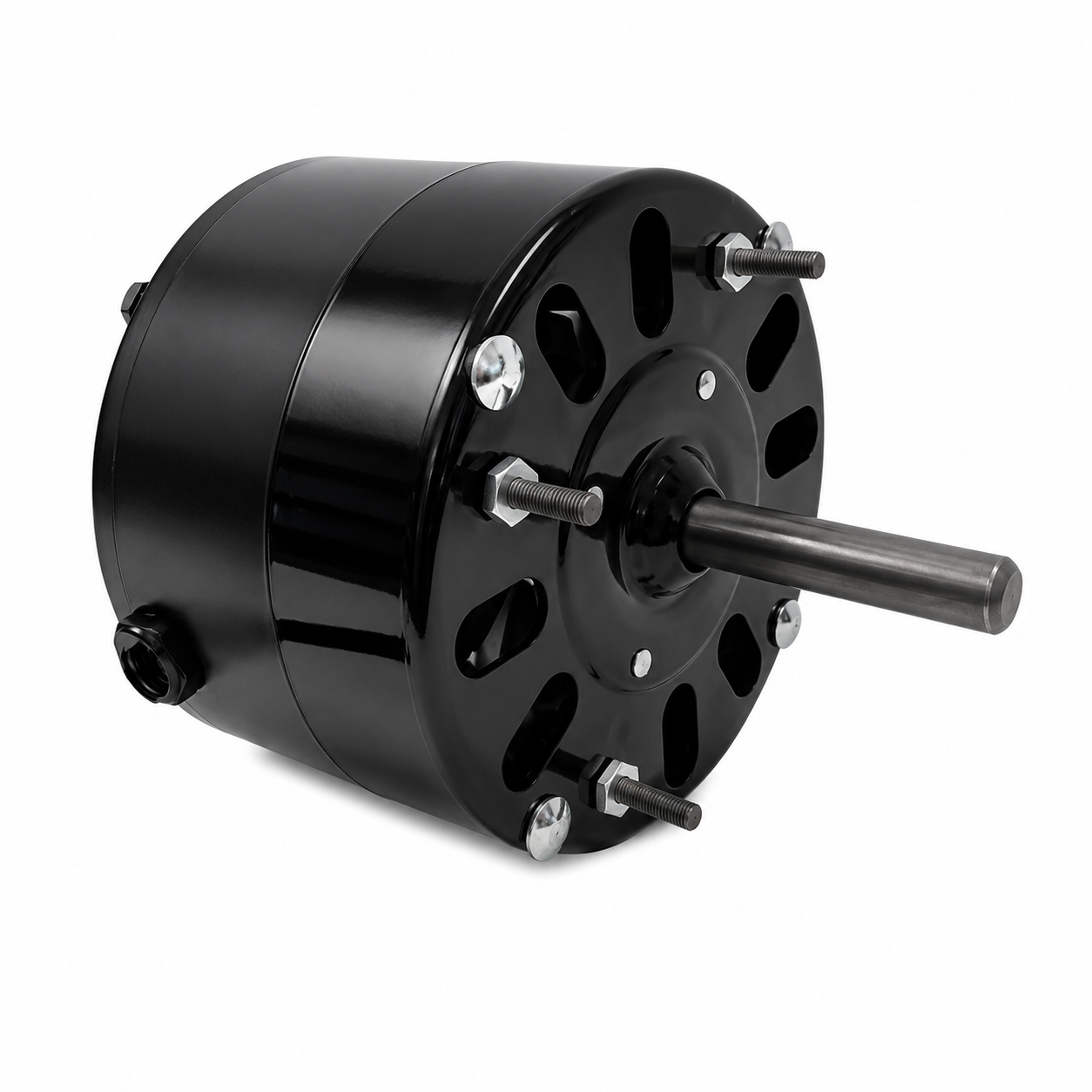

Emotortek Fan & Blower Motors (HVAC/R) SS599 - 1/10 HP - 115 V - 1550 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) SS599 - 1/10 HP - 115 V - 1550 RPM - Single phase

$294.00 CAD
$294.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS599

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Thru-Bolt Mount

  • Horsepower : 1/10, 1/20, 1/30
  • Amps : 3.0, 1.70, 1.0
  • Frequency : 60 Hz
  • Length : 3.37"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 2.56"
  • Type : Shaded Pole
  • Speeds : 3
  • Diameter : 5.0"
  • Bearings : Ball
  • Rotation : CCWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation
  • Weight (lbs.) : 7

  • Reference : Century 599, Fasco 7108-2072 7108-6885 7108-0126 7197-2203 7108-2094 7108-2201 7108-2202 7108-2208 7108-2209 7108-2595 7108-6194 7108-0063, Fasco Catalogue No. D110, Marathon 48C17D2055, Universal Electric DB2E011N, F48HXCPK1531
