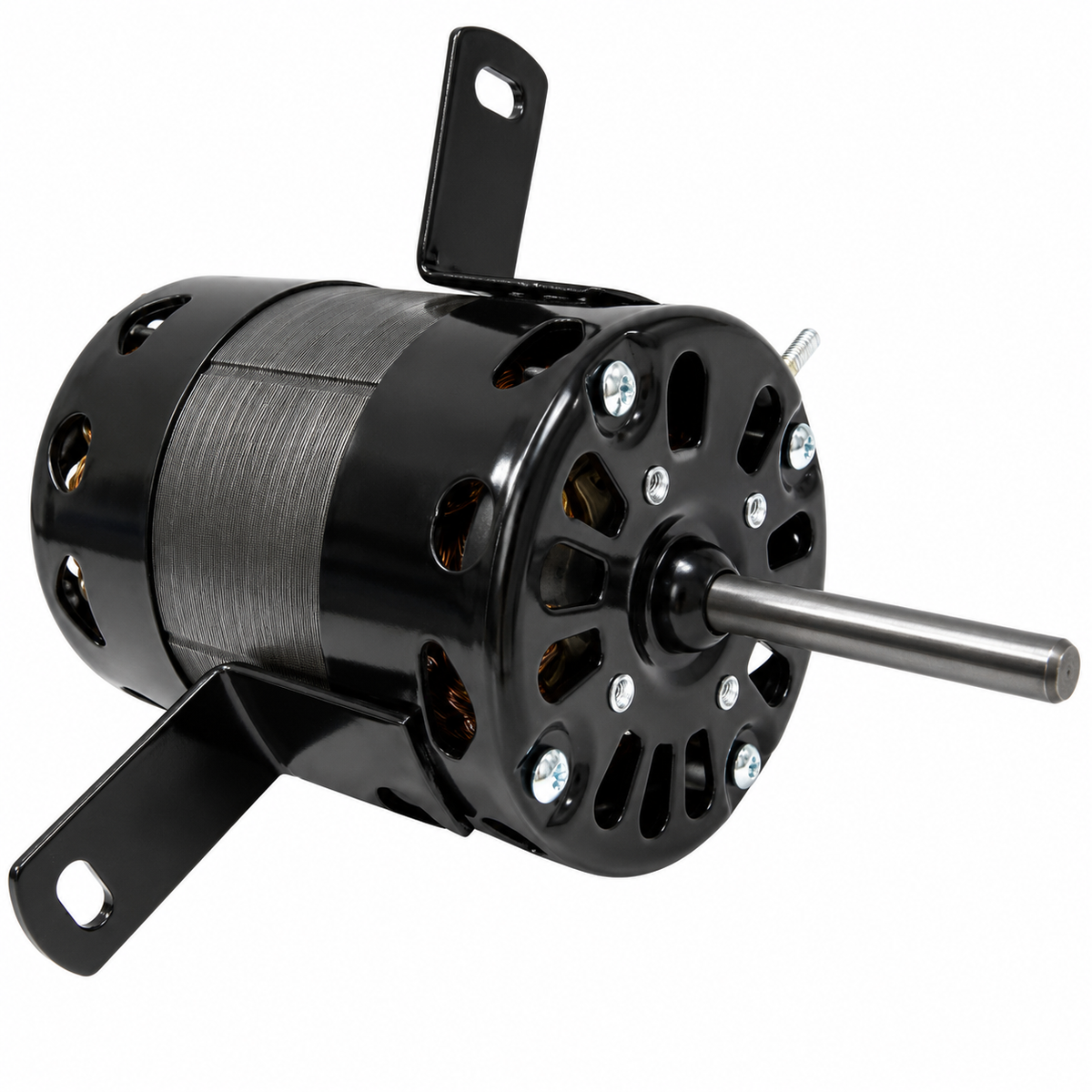

Emotortek OEM Replacement Motors (HVAC/R) SS563 - 1/15 HP - 115 V - 1600 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS563 - 1/15 HP - 115 V - 1600 RPM - Single phase

$168.00 CAD
$168.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS563

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/15 HP

RPM : 1600

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Lug Mount

  • Horsepower : 1/15
  • Amps : 2.90
  • Frequency : 60 Hz
  • Length : 4.46"
  • Enclosure : Open
  • Shaft Dim. : 5/16" x 2-1/2"
  • Type : Shaded Pole
  • Speeds : 2
  • Diameter : 3.3"
  • Bearings : Sleeve
  • Rotation : CCWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, 3 Lug Mounts
  • Weight (lbs.) : 4

  • Reference : Dayton 4M301, Electrohome 2868-513-120, Fasco 7063-6169 7063-6616 7063-8671 7063-8952 7163-0616 7163-3108 7163-5176 7163-8831, Fasco Catalogue D1161 D0563, Franklin 8254110480, MacMillan J483-4T-303/7, OmniDrive 8224115210, Universal Electric JA2R225 JA2R225N, Universal Stock No. 563
