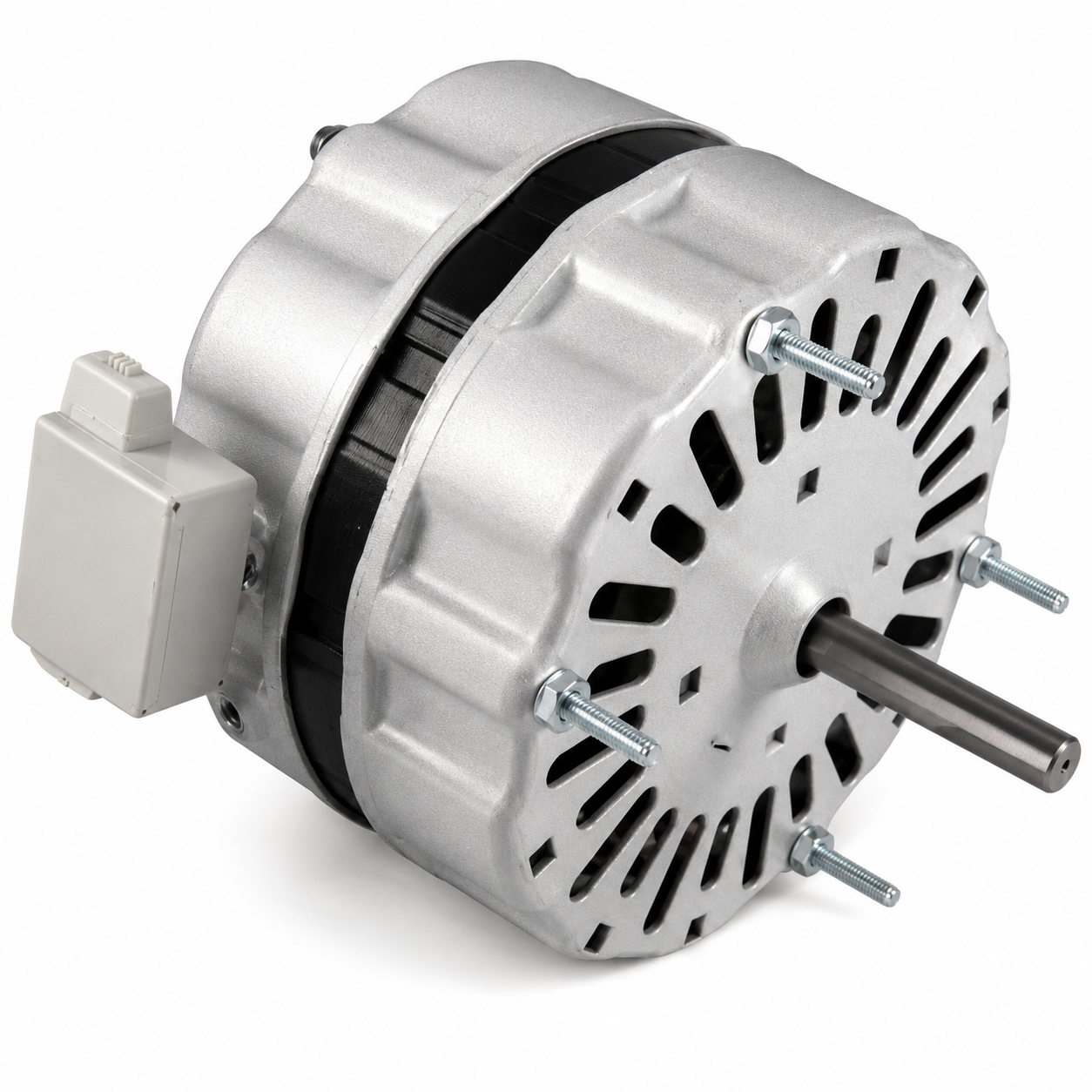

Emotortek OEM Replacement Motors (HVAC/R) SS5200 - 1/16 HP - 115 V - 1200 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS5200 - 1/16 HP - 115 V - 1200 RPM - Single phase

$315.00 CAD
$315.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS5200

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/16 HP

RPM : 1200

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Thru-Bolt Mount

  • Horsepower : 1/16
  • Amps : 1.50
  • Frequency : 60 Hz
  • Length : 3.00”
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 2-1/4”
  • Type : Permanent Split Capacitor
  • Diameter : 5.0”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Weight (lbs.) : 6
  • Reference : McM 2565, Fasco 7184-0143, Gemini 500 / 3806S, Adapter 520, Gemini 520/540, Gemeni GC-520, Gemini GC-520, JS S81-727, Loren 520 GC-520, MCMillan A0812B3806 A0812B2565, Precision 615056A 615055.
