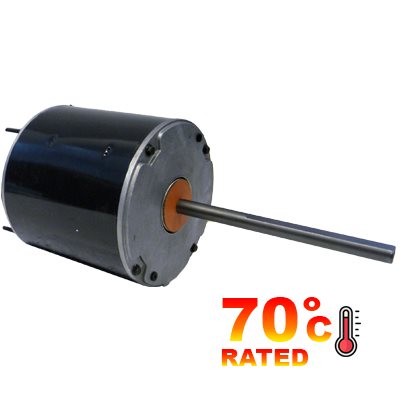

US Motors OEM Replacement Motors (HVAC/R) SS3761 - 3/4 HP - 575 V - 1075 RPM - Single phase

US Motors OEM Replacement Motors (HVAC/R) SS3761 - 3/4 HP - 575 V - 1075 RPM - Single phase

$298.00 CAD
$298.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS3761

Brand : US Motors

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Model : SS3761
  • Horsepower : 3/4 HP
  • RPM: 3000
  • Amps : 1.60
  • Frequency : 60 Hz
  • Length : 7.31"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 1/2" x 5.00"
  • Type : Permanent Split Capacitor
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Ambient Temp. : 70°C
  • Capacitor Rating : 12.5MFD-370V
  • Feature(s) : Thru-Bolts
  • Weight (lbs.) : 12
  • SS3761 HVAC motor designed for condenser fan, blower and refrigeration applications requiring a reliable 3/4 HP OEM replacement motor.
  • Reference  : A.O. Smith 9427 48AJ73A01 F48H88A01, Century 5FE1076S 5FE1076SV1 173098, Copeland 050-0260-02, Emerson K55ZZRCS5452 K55HXJLA9176 K55ZZCMF1568 K55ZZKJJ3333 K55ZZPYN1761 K55ZZWPD1364, Fasco D2753, General Electric 5KCP39PGC532 5KCP39PGC616 5KCP39PGL533 5KCP39SGA305 5KCP39SGH305 5KCP39SGU094, Marathon 48A11T11042 48A11T566 X099-575 X455, Rotom R42607, Trane X70556312-010, Universal Electric HE3W032 HF3U043 HF3U053 HF3W085 HF3W088 HF3W093, U.S. Motors 1099H, TE575634, Y7S623E573
