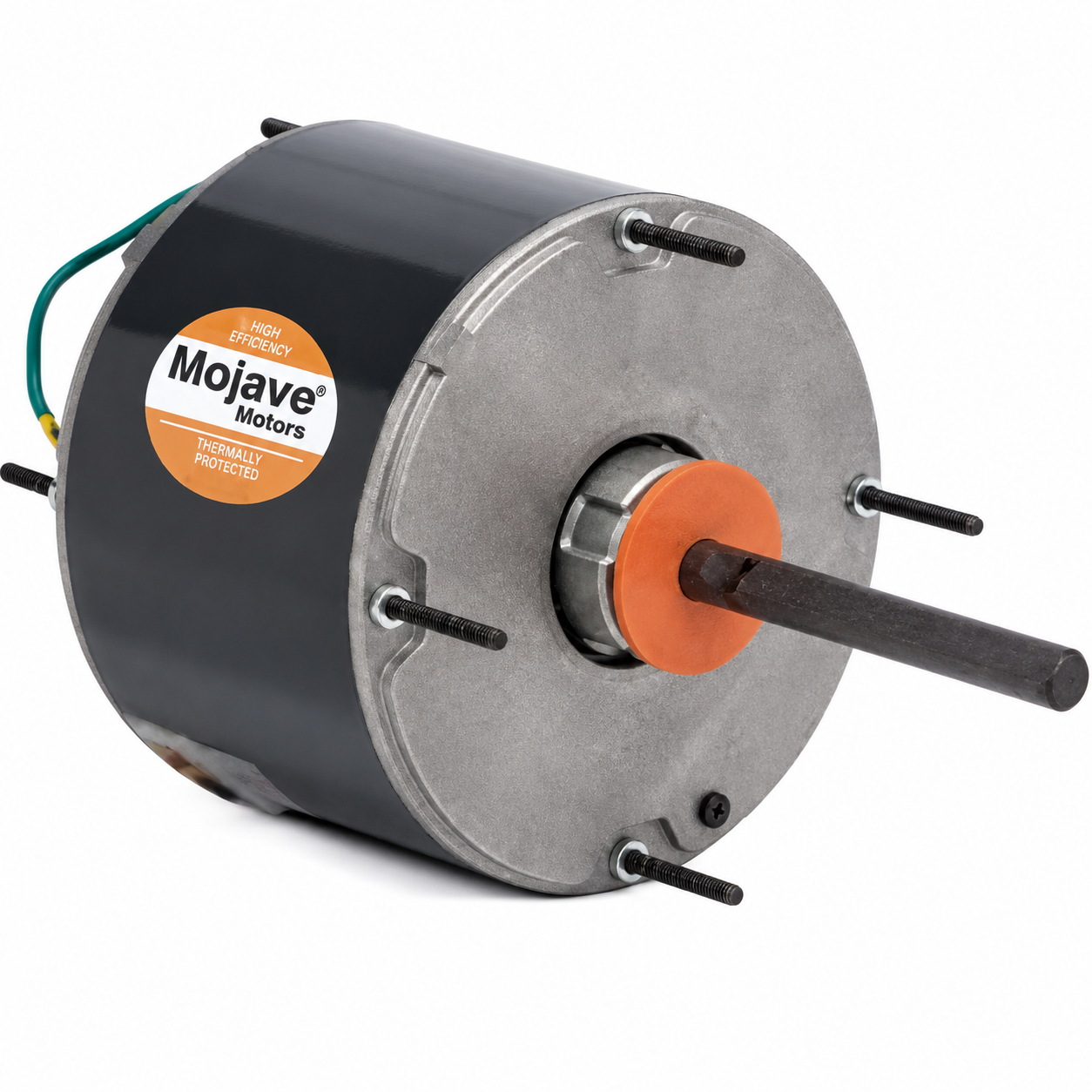

Emotortek OEM Replacement Motors (HVAC/R) SS3756 - 1/4 HP - 575 V - 825 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS3756 - 1/4 HP - 575 V - 825 RPM - Single phase

$394.00 CAD
$394.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS3756

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 825

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/4
  • Amps : 0.90
  • Frequency : 60 Hz
  • "C" Dim. : 10-3/8"
  • Enclosure : Totally Enclosed Air Over
  • Shaft Dim. : 1/2" x 5.00"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Thru-Bolts
  • Weight (lbs.) : 17
  • Reference : A.O.Smith F48AA59A50 F48L67A50 F48L87A50, Emerson K55HXPUJ1682 K55HXPYC1751 K55HXPZZ5394, Emerson Stock No. 1276, General Electric 5KCP39NGP985S, York 024-25122-000 024-25122-700
