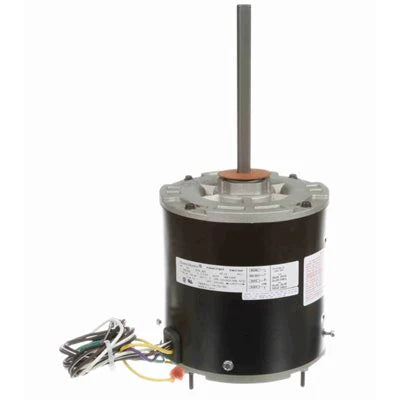

Century Condenser Fan Motors (HVAC/R) EM3746F - 1/2 HP - 208-230 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) EM3746F - 1/2 HP - 208-230 V - 825 RPM - Single phase

$281.00 CAD
$281.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3746F

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower : 1/2
  • Amps : 2.70
  • Frequency : 60 Hz
  • Length : 5-5/8"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2" x 6"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Feature(s) : No Base, Class 'B' Insulation, Thru Bolts Included
  • Weight (lbs.) : 20
  • Reference : Century EM3746, Emerson K55HXWGJ0950 1870 1870H, SS7746
