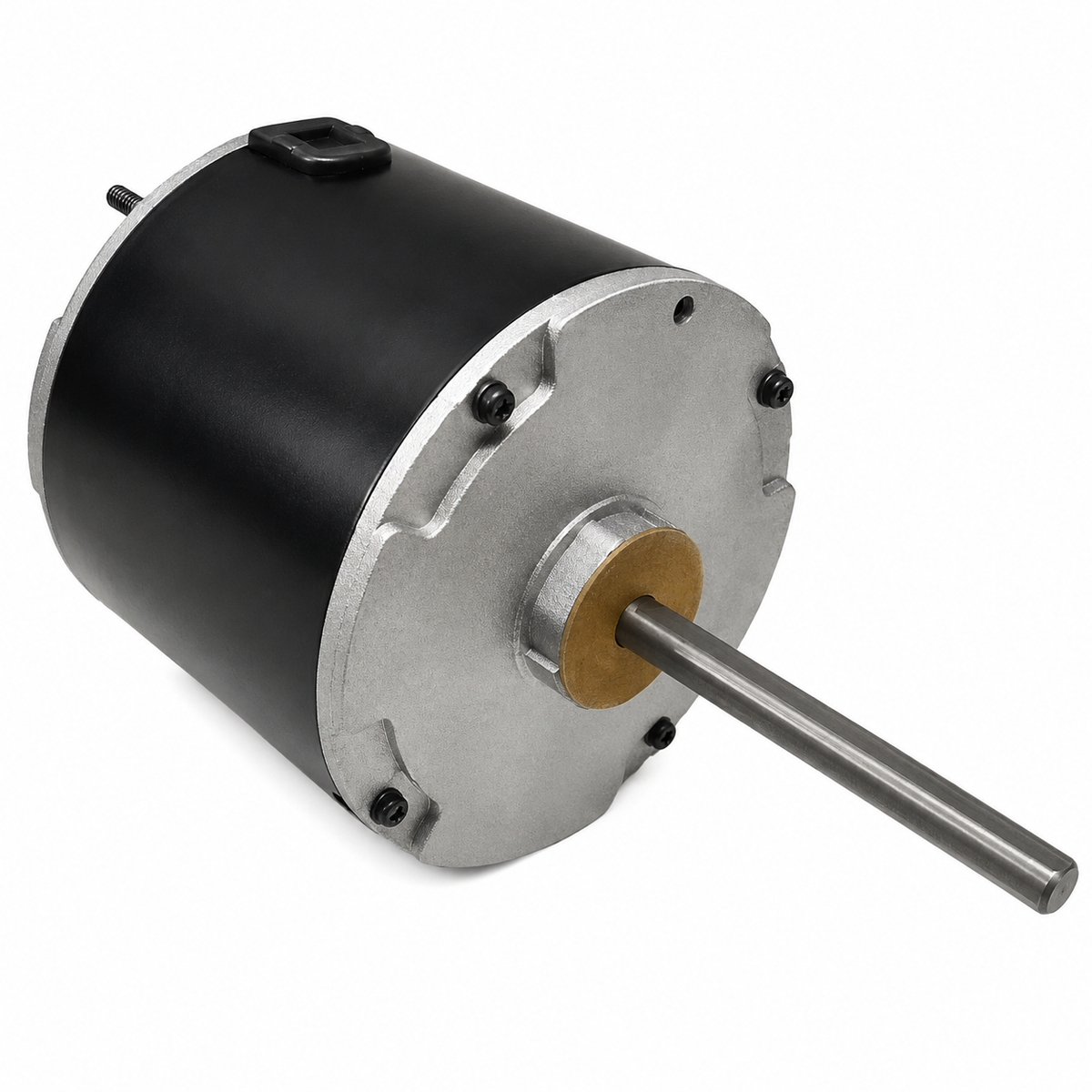

Emotortek Condenser Fan Motors (HVAC/R) 3731E - 3/4 HP - 208/230 V - 1075 RPM - Single phase

Emotortek Condenser Fan Motors (HVAC/R) 3731E - 3/4 HP - 208/230 V - 1075 RPM - Single phase

$202.00 CAD
$202.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3731E

Brand : Emotortek

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount / Resilient Ring

  • Horsepower : 3/4
  • Amps : 5.30
  • Frequency : 60 Hz
  • Length : 5-3/8"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2” x 6.00”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 10MFD-370V
  • Feature(s) : Shaft Slinger, Extended Thru-Bolts, Reversing Plug
  • Weight (lbs.) : 18
  • Reference : 3731E, 779, 668, FE1076S, FSE1076SV1, GE-3735, D933
