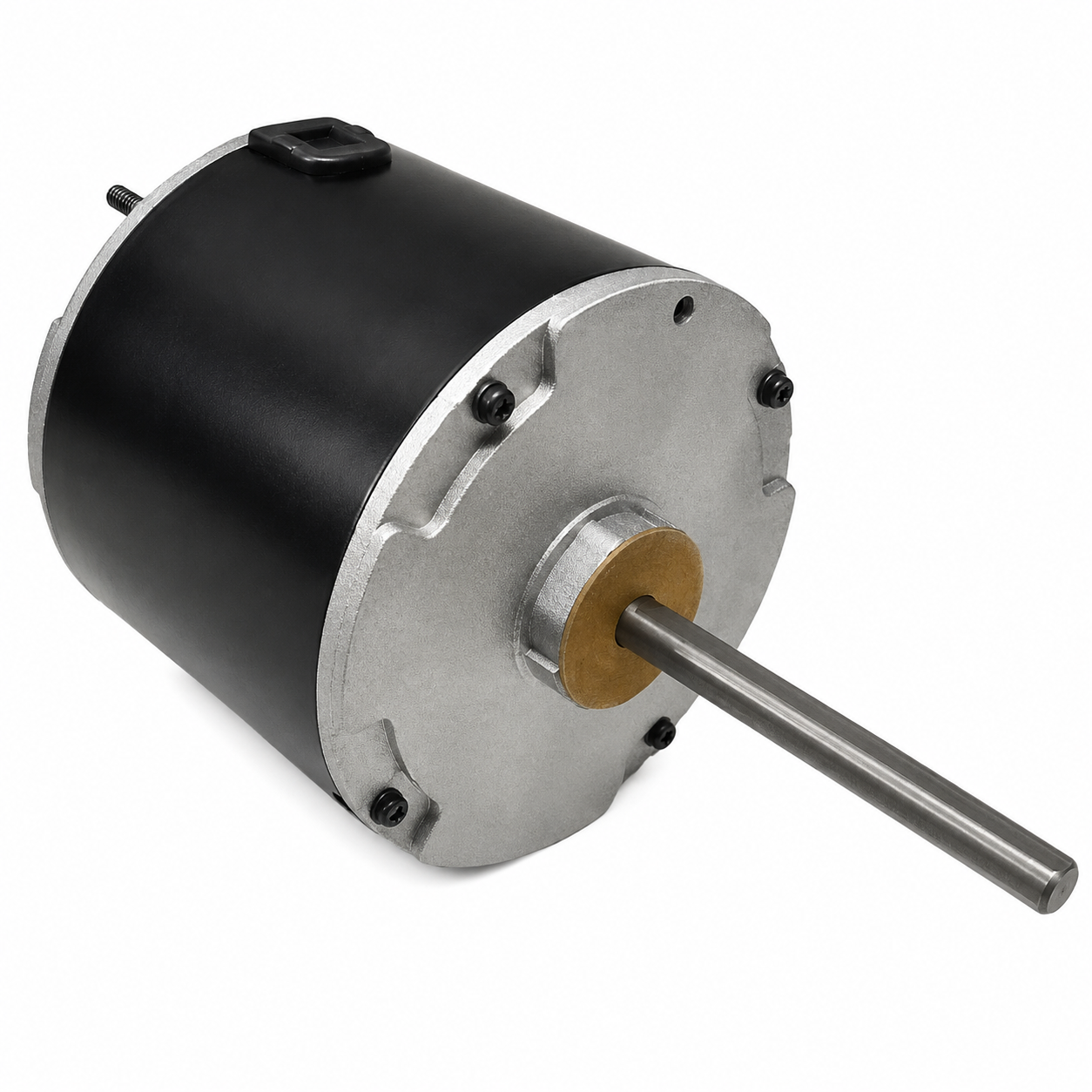

Emotortek Condenser Fan Motors (HVAC/R) 3730E - 1/2 HP - 208/230 V - 1075 RPM - Single phase

Emotortek Condenser Fan Motors (HVAC/R) 3730E - 1/2 HP - 208/230 V - 1075 RPM - Single phase

$182.00 CAD
$182.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3730E

Brand : Emotortek

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower : 1/2
  • Amps : 3.50
  • Frequency : 60 Hz
  • Length : 5-1/8"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2” x 6.00”
  • Type : Permanent Split Capacitor
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Auto
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 10MFD-370V
  • Feature(s) : Shaft Slinger, Extended Thru-Bolts, Reversing Plug
  • Weight (lbs.) : 16
