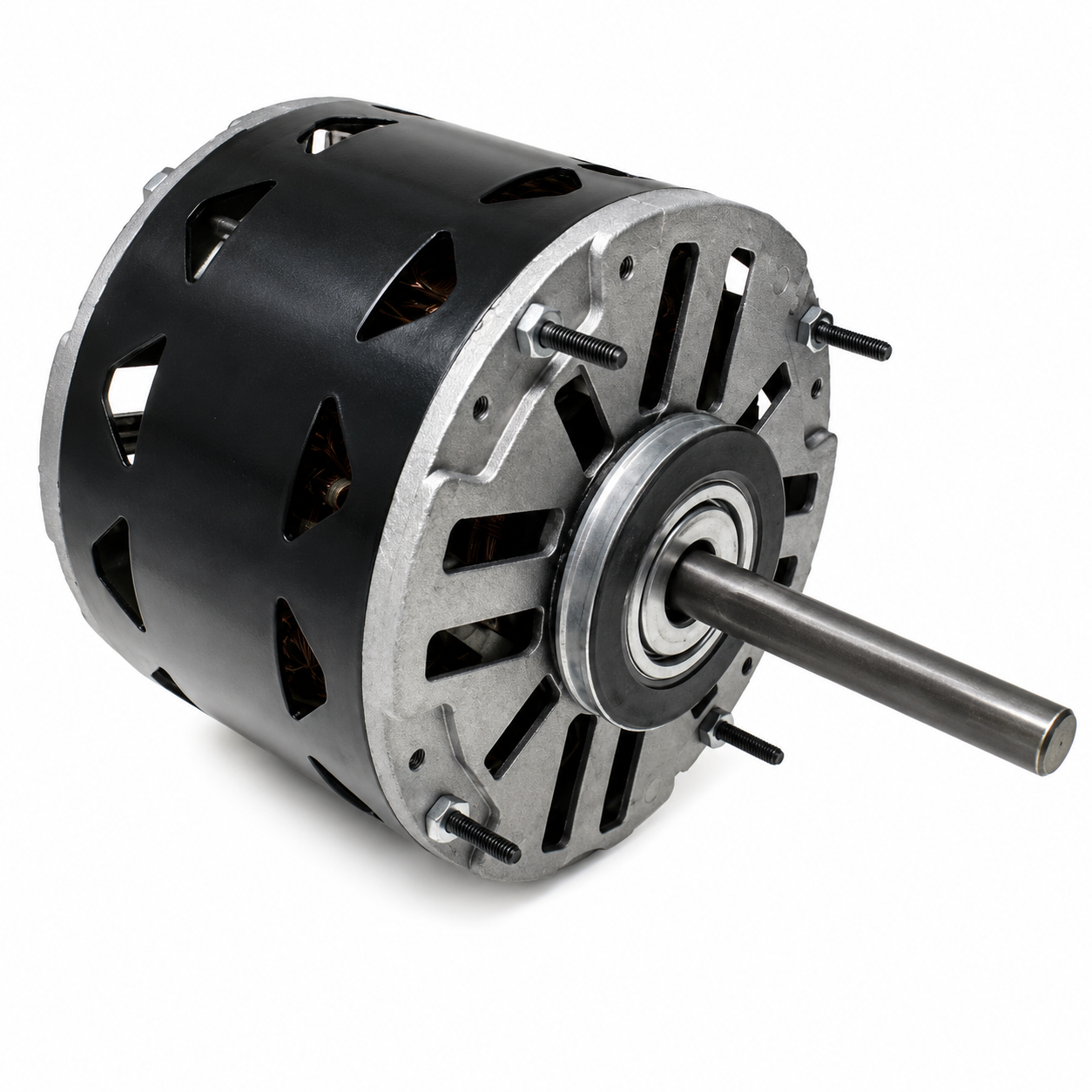

Emotortek Fan & Blower Motors (HVAC/R) 3587 - 1/2 HP - 115 V - 1075 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) 3587 - 1/2 HP - 115 V - 1075 RPM - Single phase

$134.00 CAD
$134.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3587

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Ring / Stud

  • Horsepower : 1/2
  • Amps : 7.50
  • Frequency : 60 Hz
  • Length : 4-7/8"
  • Enclosure : Open
  • Shaft Dim. : 1/2” x 4.00”
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Capacitor Rating : 10MFD-370V
  • Feature(s) : Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) : 17
  • Reference : G.E. Genteg 3587, Mars 10587, Century A.O. Smith DL1056, Emerson U.S. Motors 1865, Dayton 4M100, Fasco D701, Marathon X004, Packard 43587, Rheem WS1-12BAA3-01, Carrier Totaline P257-8587, York Source 1 S1-FHM3587
