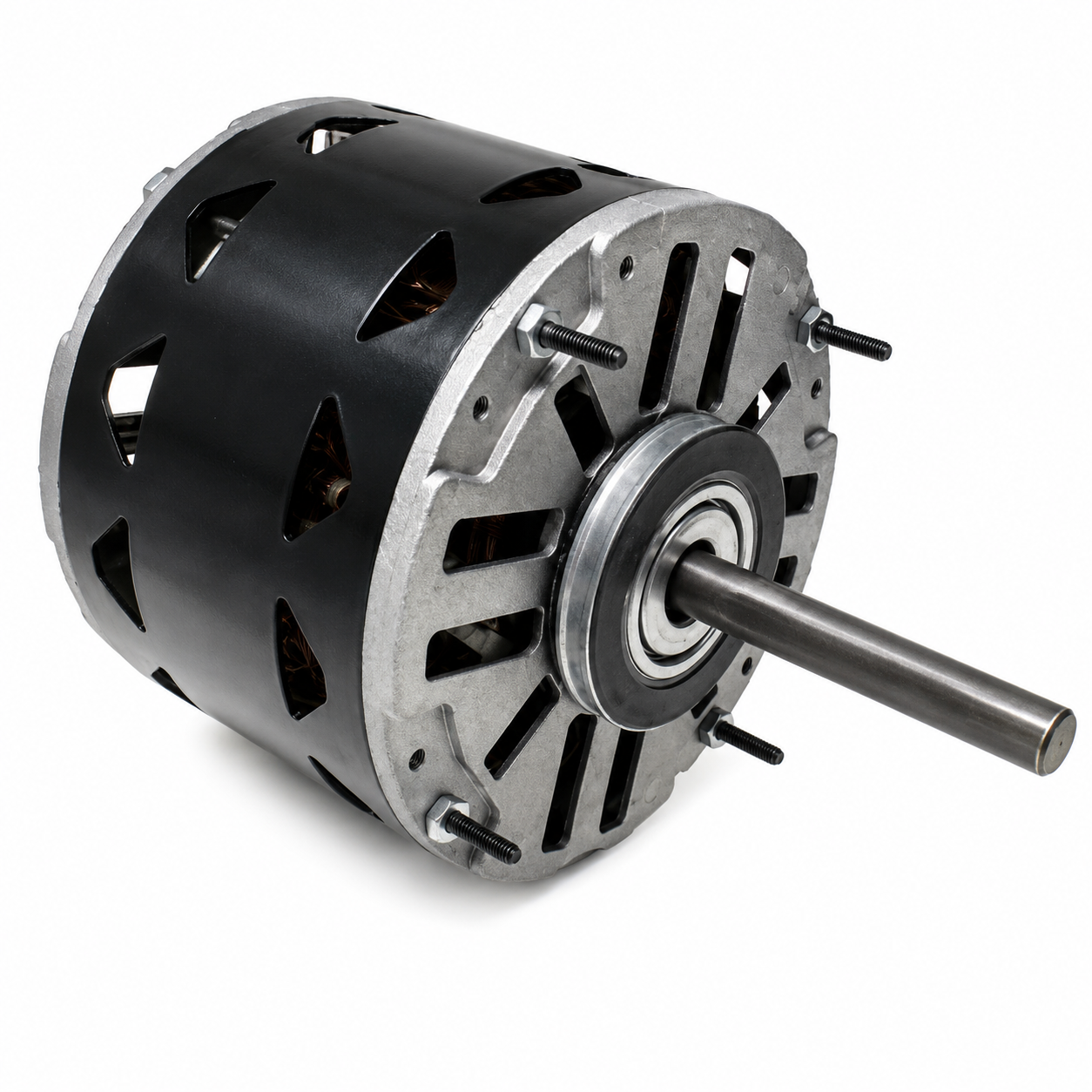

Emotortek Fan & Blower Motors (HVAC/R) 3585 - 1/3 HP - 115 V - 1075 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) 3585 - 1/3 HP - 115 V - 1075 RPM - Single phase

$124.00 CAD
$124.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3585

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Ring / Stud

  • Horsepower : 1/3
  • Amps : 5.50
  • Frequency : 60 Hz
  • Length : 4-3/8"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 4.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Capacitor Rating : 7.5MFD-370V
  • Feature(s) : Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) : 12
  • Reference : G.E. Genteq 3585, Mars 10585, A.O.Smith Century DL1036, Emerson U.S. Motors 1864, Dayton 4M098, Fasco D727, Marathon X002, Packard 43585, Rheem WS1-13BAA3-01, Carrier Totaline P257-8585, York Source 1 S1-FHM3585
