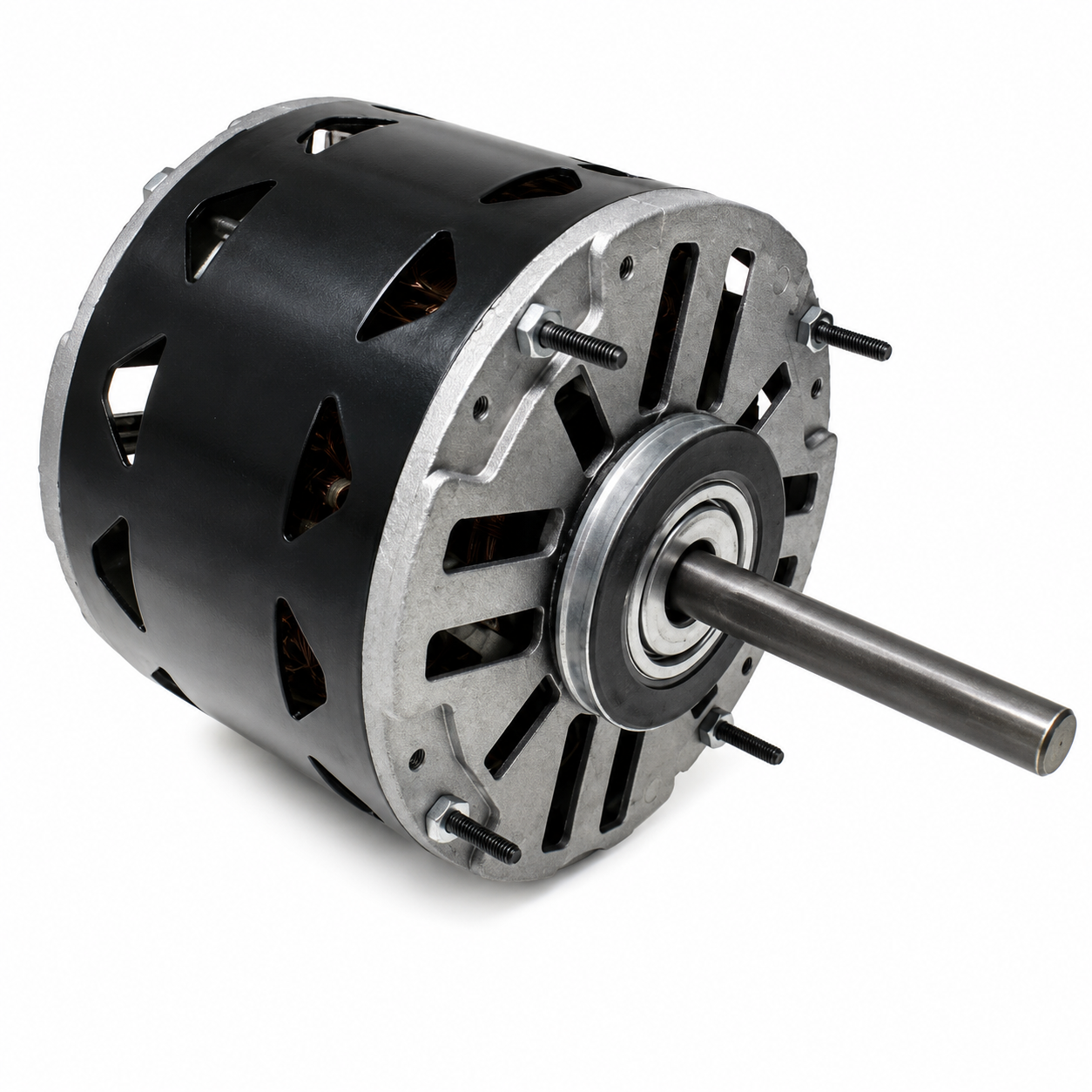

Emotortek Fan & Blower Motors (HVAC/R) 3583 - 1/4 HP - 115 V - 1075 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) 3583 - 1/4 HP - 115 V - 1075 RPM - Single phase

$119.00 CAD
$119.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3583

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount / Resilient Ring

  • Horsepower : 1/4
  • Amps : 4.20
  • Frequency : 60 Hz
  • Length : 4.00"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 4.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) : 10
  • Reference : Mars 10583, A.O.Smith DL1026, Emerson U.S. Motors 1863, Dayton 4M096, Fasco D721, Marathon X000, Packard 43583, Rheem WS1-14BAA3-01, Carrier Totaline P257-8583, York Source 1 S1-FHM3583
