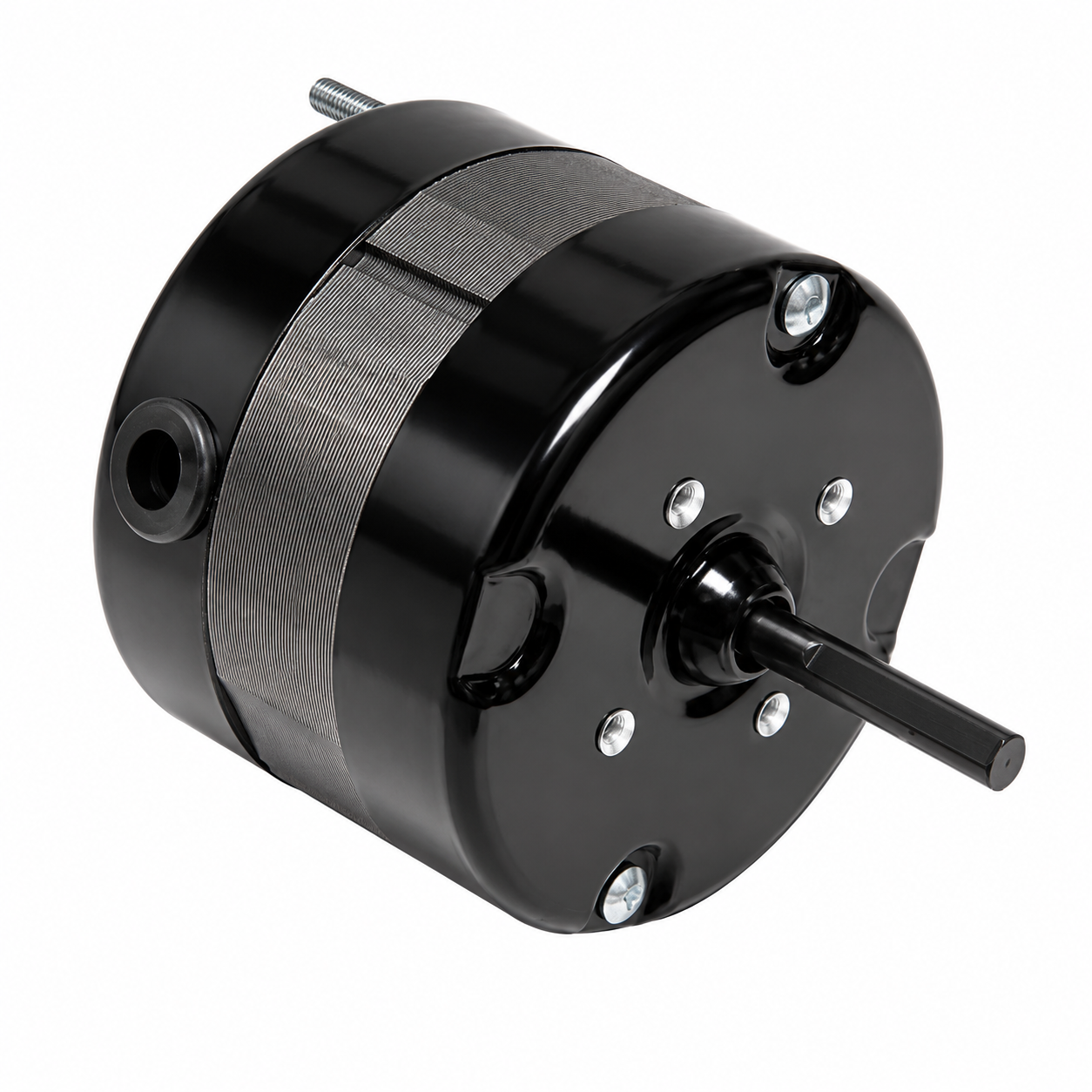

Emotortek OEM Replacement Motors (HVAC/R) SS217 - 1/40 HP - 240 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS217 - 1/40 HP - 240 V - 1550 RPM - Single phase

$69.00 CAD
$69.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS217

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/40 HP

RPM : 1550

Voltage : 240 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/40
  • Amps : 0.50
  • Frequency : 60 Hz
  • Length : 2-5/16”
  • Enclosure : Totally Enclosed Construction
  • Shaft Dim. : 1/4” x 1-1/2”
  • Type : Shaded Pole
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CCWSE
  • Protector : Thermally Protected
  • Feature(s) : 24” Leads
  • Weight (lbs.) : 3
  • Reference :  Chromalox 02188-002, Electrohome 2868-405-081 2868-405-180 2868-407-022 2868-407-048 2868-407-105 2868-407-130 2868-407-139 2868-407-152 2868-407-162 2868-409-045 2868-409-048 2868-409-050 2868-513-073 2868-513-081 2868-513-090 2868-811-013, Fasco 7163-0646 7173-0647, Fasco Catalogue No. D1119, Franklin Bluffton 8213227090 8213567010 8213615023 8213727001, MacMillan 8213525089 8213525091 8213525097 8213615023, Rotom R217, Stelpro (Chalair) MO-016, S0016, MOT-04, Universal Electric AA2M5913 AA2M6138 AA2M6686 JA2C502 JA2C502N JA2C503 JA2C503N JA2C533 JA2C533N JA2C551 JA2C551N JA2M467 JA2M467N, YJ83-15A
