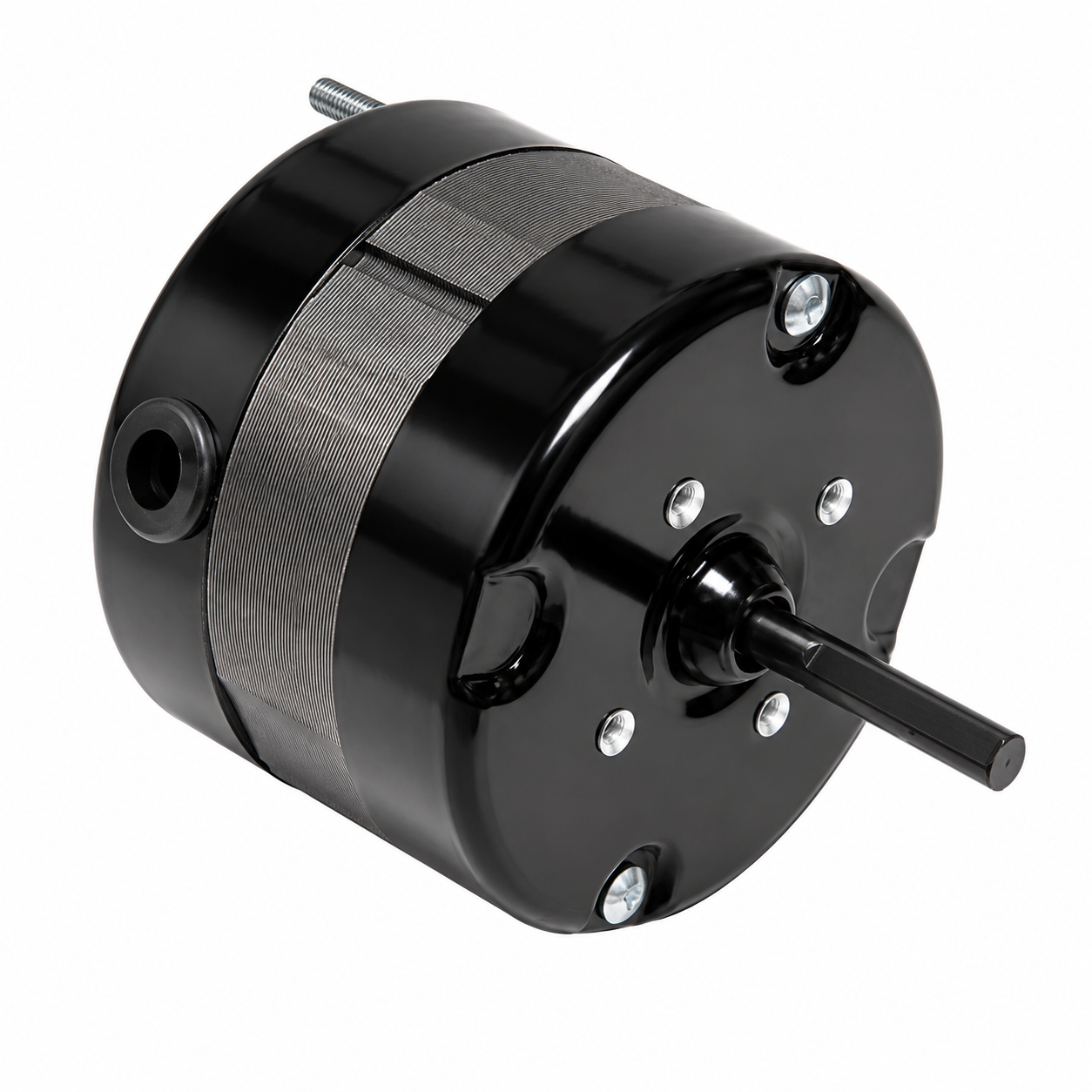

Emotortek OEM Replacement Motors (HVAC/R) SS210 - 1/50 HP - 230 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS210 - 1/50 HP - 230 V - 1550 RPM - Single phase

$65.00 CAD
$65.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS210

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/50 HP

RPM : 1550

Voltage : 230 V

Phase : Single

Frame : 3.3

Mounting : Thru-Bolt Mount

  • Model : SS210
  • Horsepower : 1/50 HP
  • Voltage : 115V
  • RPM : 1050
  • Amps : 0.40
  • Frequency : 60 Hz
  • Length : 2-5/16”
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/4" x 1-1/2”
  • Type : Shaded Pole
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Feature(s) : 23” Leads
  • Weight (lbs.) : 4
  • SS210 shaded pole HVAC motor designed for small fans and ventilation applications requiring a reliable 1/50 HP 115V replacement motor.
  • Référence :  Electrohome 2818-440-805, 2818-440-819, 2818-440-836, 2818-440-839, 2818-440-848, 2818-440-853, 2818-440-854, 2818-440-857, 2818-440-859, 2818-441-005, 2868-403-015, 2868-405-054, 2868-405-109, 2868-405-149, 2868-405-156, 2868-405-158, 2868-405-168, 2868-405-176, 2868-407-021, 2868-407-057, 2868-407-059, 2868-407-113, 2868-407-128, 2868-407-135, 2868-407-140, 2868-407-143, 2868-507-022, 2868-507-025, 2868-507-082, 2868-507-092, 2868-507-107, 2868-507-108, 2868-507-109, 2868-507-137, 2N5801, 2N6501, SM210, SM217, Franklin Bluffton 76210, 8213425013, 8213425024, 8213527141, AK41221B, AK41277E, AK6113Z, MacMillan 8213425024, 821352041, 8213525082, 8213527141, Rotom R210, Universal Electric AA2M5553K, AA2M6856K
