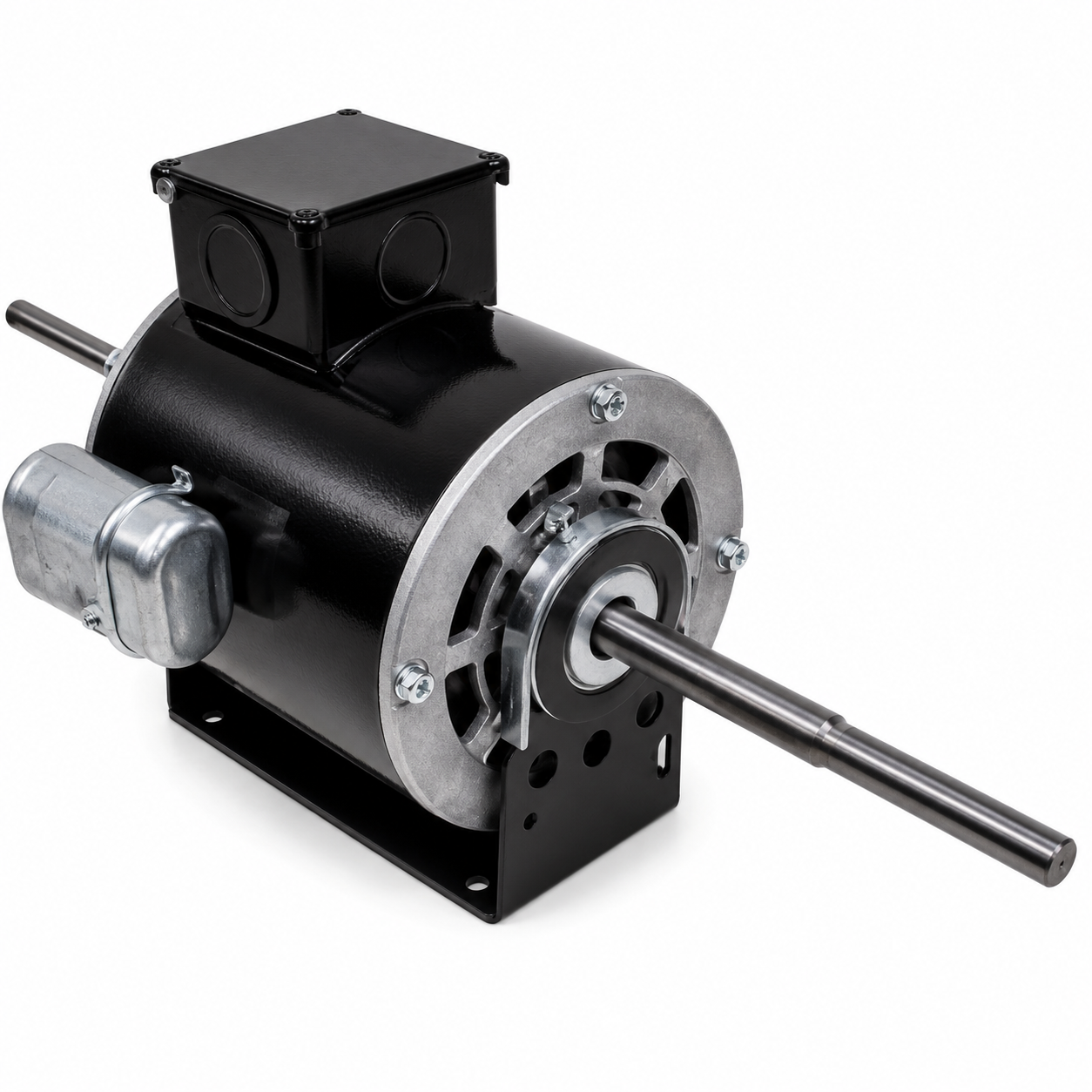

Emotortek OEM Replacement Motors (HVAC/R) SS1895 - 1/4 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS1895 - 1/4 HP - 115 V - 1550 RPM - Single phase

$474.00 CAD
$474.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1895

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Model : SS1895
  • Horsepower : 1/4 HP (420W)
  • Amps : 3.60
  • Frequency : 60 Hz
  • Length : 5-7/16"
  • Enclosure : Open
  • Shaft Dim. : 8-7/16" x 1/2" x 8-7/16"
  • Type : Permanent Split Capacitor
  • Speeds : 6
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 7.5MFD-370VAC
  • Feature(s) : Resilient Base, Class 'B' Insulation
  • Weight (lbs.) : 18.4
  • SS1895 Elco blower motor designed for HVAC air handlers and blower systems requiring a reliable 1/4 HP 115V 6-speed replacement motor.
  • Reference :Elco ECFC1895, 40101161, 40101587, 40101895, 3FGBU210-51-6/V1, Elco EC-FC-1587, EC-FC-1895, Rosemex F-600, 448-482/119, XECFC1895.
