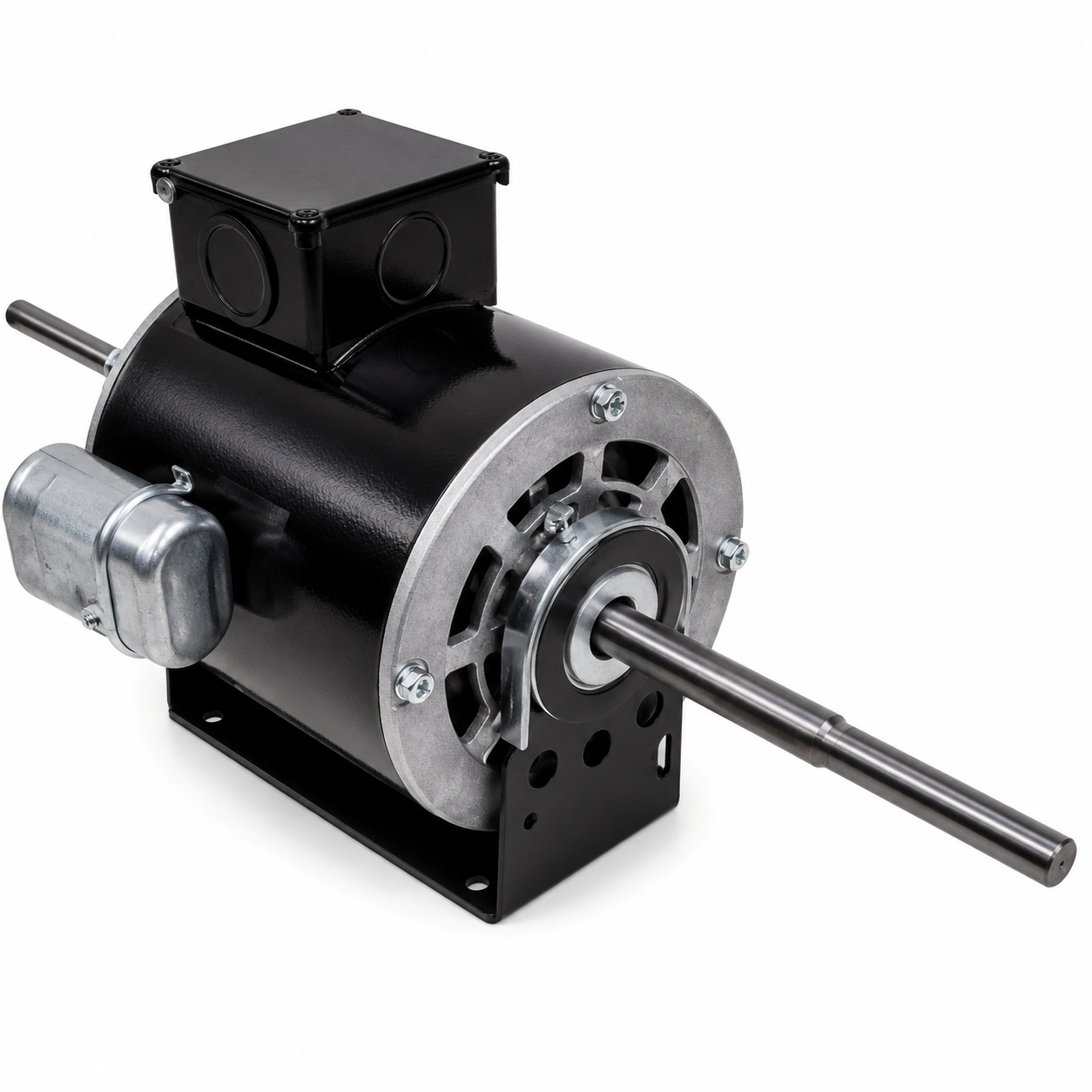

Emotortek OEM Replacement Motors (HVAC/R) SS1893 - 1/15 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS1893 - 1/15 HP - 115 V - 1550 RPM - Single phase

$388.00 CAD
$388.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1893

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/15 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Resilient Base

  • Horsepower : 1/15 (50W)
  • Amps : 0.82
  • Frequency : 60 Hz
  • Length : 3-13/16"
  • Enclosure : Open
  • Shaft Dim. : 7-3/4" x 1/2" x 7-3/4"
  • Type : Permanent Split Capacitor
  • Speeds : 6
  • Diameter : 5"
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.15
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370VAC
  • Feature(s) : Class 'B' Insulation, Resilient Base
  • Weight (lbs.) : 10
  • Reference : Elco 3RGBU50-30-6V/1, ECFC1893, 40101893 40101894 40101585 EC-FC-1893 EC-FC-1585, 442-482/118, Rosemex EL348
