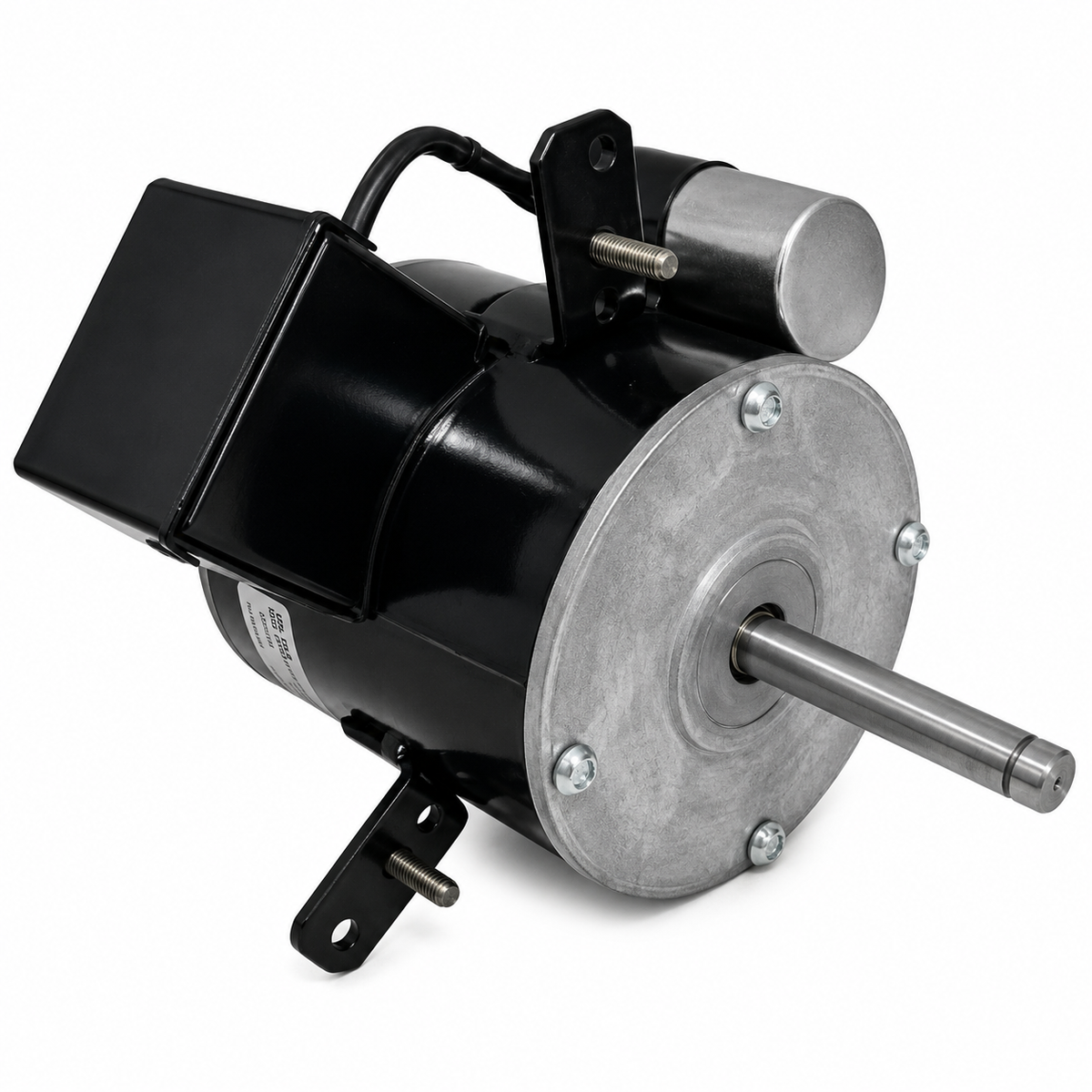

Emotortek OEM Replacement Motors (HVAC/R) SS1617 - 1/4 HP - 115 V - 1090 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS1617 - 1/4 HP - 115 V - 1090 RPM - Single phase

$529.00 CAD
$529.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1617

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1090

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Lug Mount

  • Amps : 2.52/1.22
  • Frequency : 60 Hz
  • Length : 5-5/8"
  • "C" Dim. : 9-1/8"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2" x 3-1/2"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 10MFD-370VAC
  • Feature(s) : No-Base, Class 'B' Insulation, 3 Lugs Included
  • Weight (lbs.) : 15.4
  • Reference : Elco ECAF1617 3FGMU145-70-6-2V/1 ECA-1617, Universal Electric DE3G139N , OEM: Rosemex EA 01038
