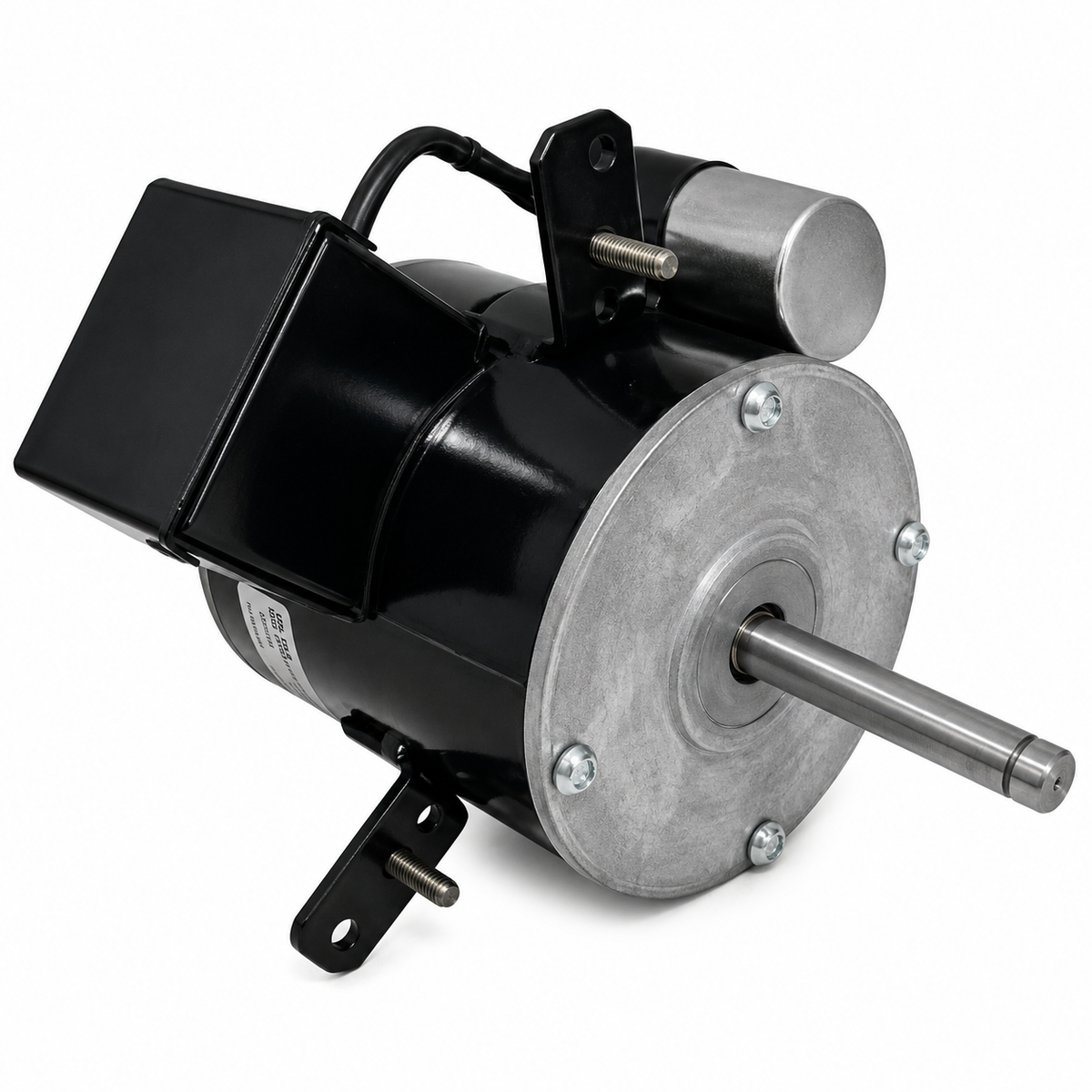

Emotortek OEM Replacement Motors (HVAC/R) SS1586 - 1 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS1586 - 1 HP - 115 V - 1550 RPM - Single phase

$438.00 CAD
$438.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1586

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Lug Mount

  • SS1586 OEM Replacement HVAC/R Motor  - 1/20 HP 115V
  • Horsepower : 1/20
  • Amps : 1.07
  • Frequency : 60 Hz
  • Length : 4.64"
  • "C" Dim. : 8-17/32"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2" x 3-29/32"
  • Type : Permanent Split Capacitor
  • Speeds : 2
  • Diameter : 4-5/8"
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 7.5MFD-370VAC
  • Feature(s) : No-Base, Class 'B' Insulation, 3 Lugs Included
  • Weight (lbs.) : 11
  • Reference : Elco ECAF1586 EC-AF-1586, 3RGMU45-20/1, 4010751 4010752 4010752, Universal Electric CE2D013N
