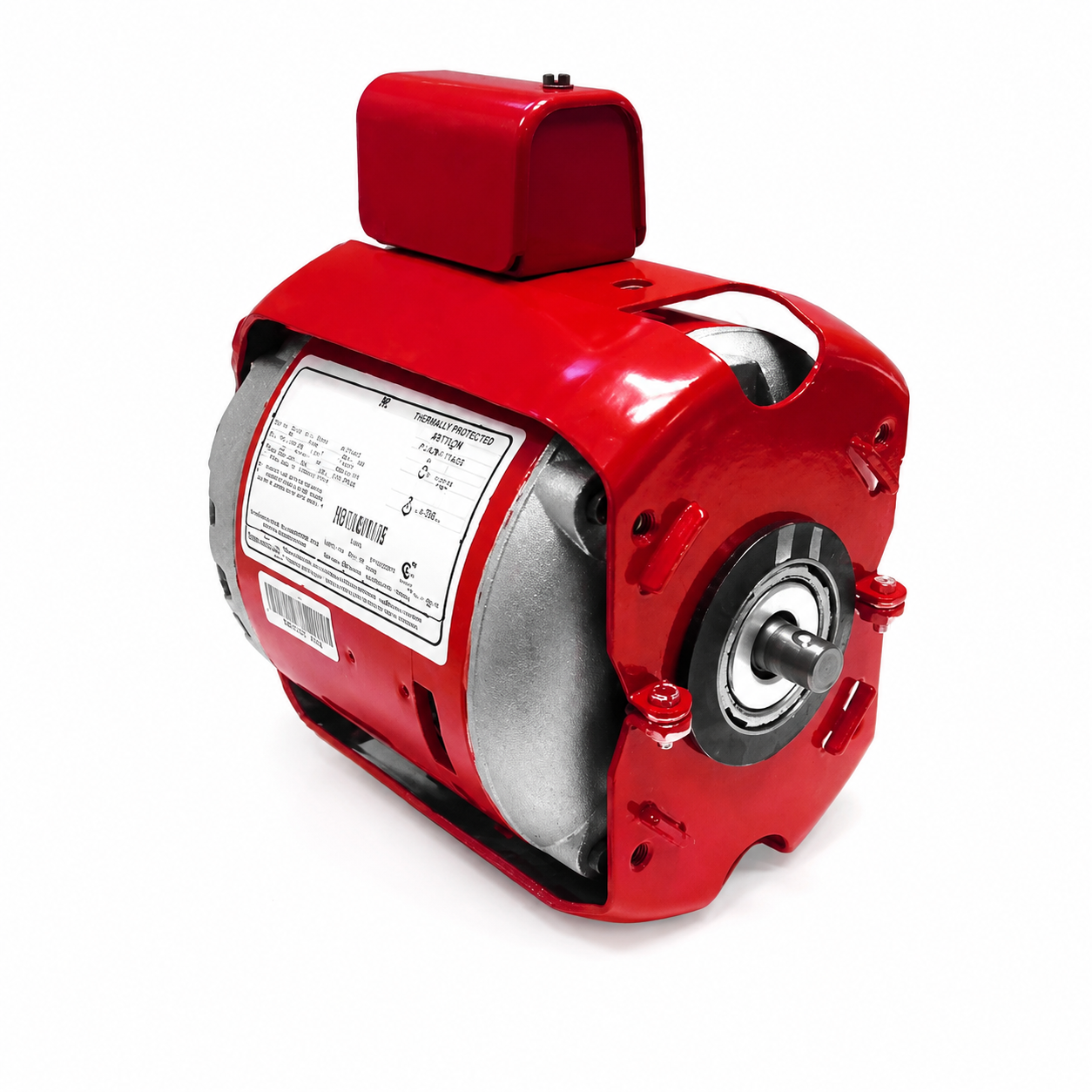

Emotortek Motors Circulator Pump (HVAC/R) SS1354 - 1/4 HP - 115 V - 1800 RPM - Single phase

Emotortek Motors Circulator Pump (HVAC/R) SS1354 - 1/4 HP - 115 V - 1800 RPM - Single phase

$269.00 CAD
$269.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1354

Brand : Emotortek

HVAC : Motors Circulator Pump (HVAC/R)

Horsepower : 1/4 HP

RPM : 1800

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Bracket Mount

  • Model : SS1354
  • Horsepower : 1/4
  • Volts : 115
  • Amps : 4.60
  • Frequency : 60 Hz
  • Length : 6-15/16"
  • "C" Dim. : 7-7/8"
  • Enclosure : Open Drip-Proof
  • Type : Single Phase
  • Speeds : 1
  • Diameter : 5-5/8"
  • Efficiency : 56.9%
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : None
  • Service Factor : 1.00
  • Ambient Temp. : 50°C
  • Feature(s) : Mounting Bracket, Class "B" Insulation
  • Weight (lbs.) : 16
  • SS1354 circulator pump motor designed for hydronic heating systems, boiler circulation and hot water pump applications in residential and commercial HVAC/R systems
  • Reference : Armstrong106045-063, 817025-007 S-45, Bell & Gossett 111040, Century 193963, Dayton 4UE14, Emerson S055TJL7911011B, Emerson No. 3259, Rotom R1354, HW2024B1
