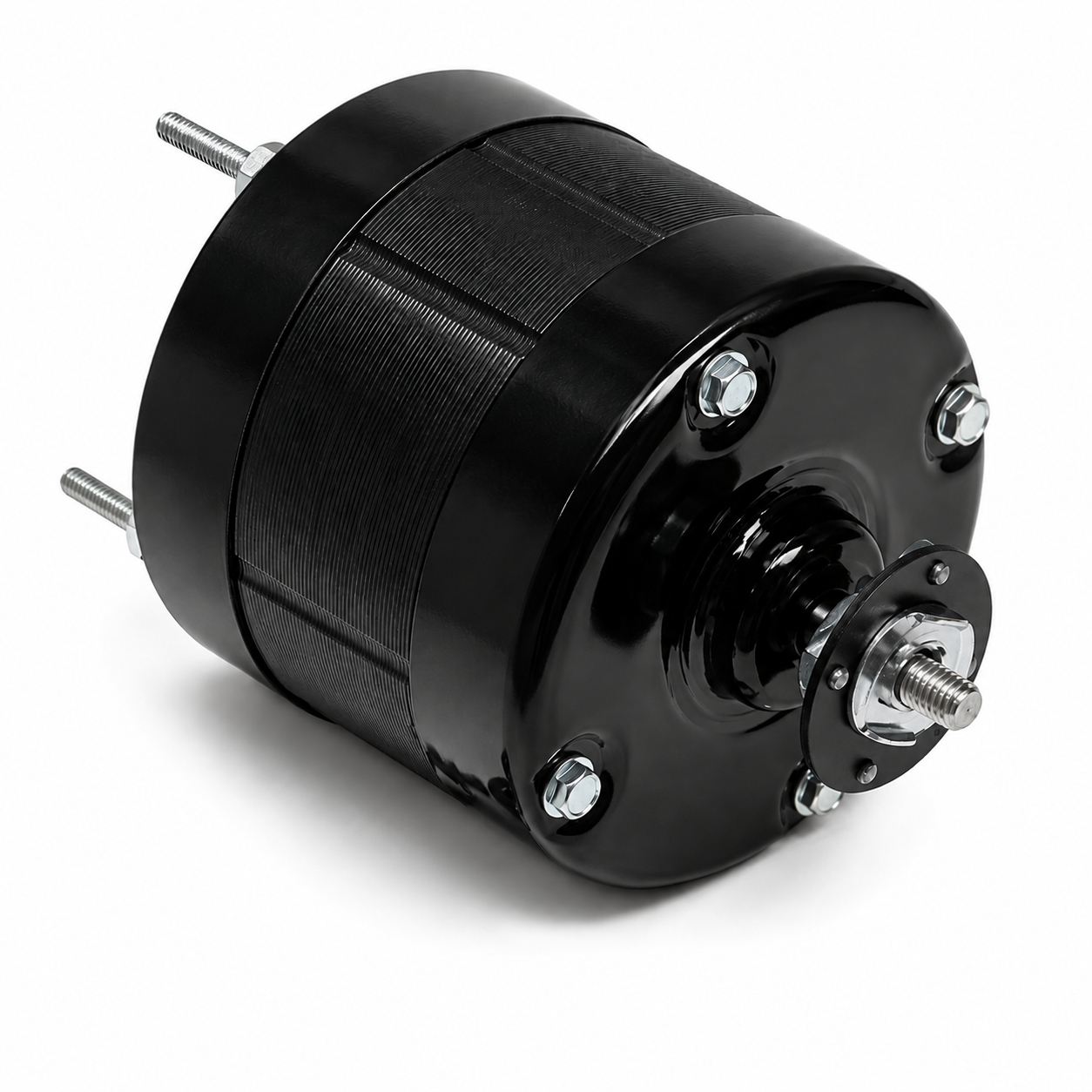

Emotortek OEM Replacement Motors (HVAC/R) SS125 - 1/20 HP - 230 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS125 - 1/20 HP - 230 V - 1550 RPM - Single phase

$125.00 CAD
$125.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS125

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1550

Voltage : 230 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/20
  • Amps : 0.80
  • Frequency : 60 Hz
  • Length : 2.80”
  • Enclosure : Totally Enclosed Construction
  • Shaft Dim. : Hubless
  • Type : Shaded Pole
  • Diameter : 3.3”
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Feature(s) : Lyall Cord & Plug with 4 Bolt Mounting
  • Weight (lbs.) : 4
  • Reference : Electrohome 2818-541-022 2868-505-041 2868-511-014 2868-513-020 2868-811-006, Franklin 8213927039 8213927049 AK4L151B, MacMillan 8213925069 8213925130, Universal Electric AB2P6375 AB2R046 JA2P084, Rotom R1-R125, OEM Dunham, Bush
