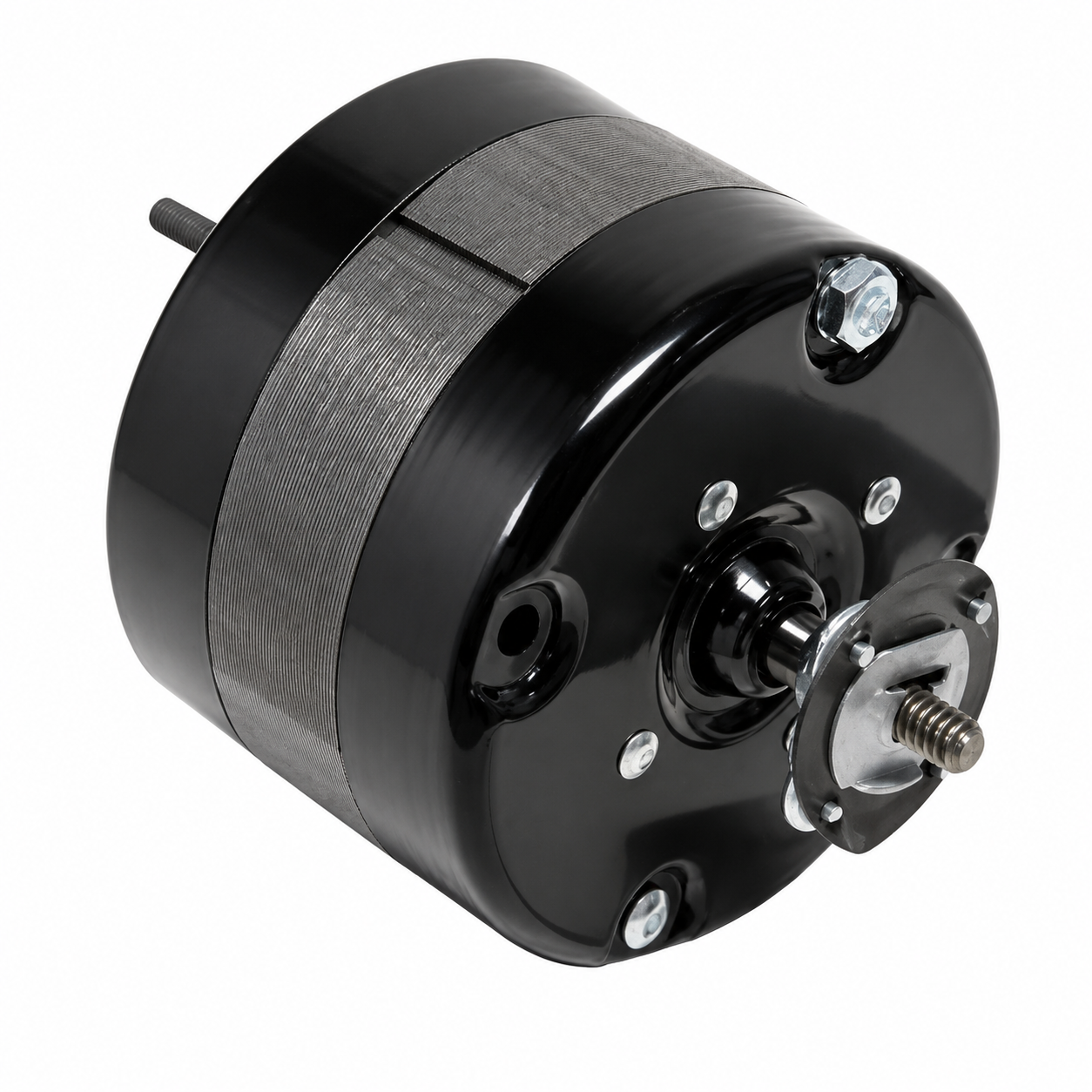

Emotortek Fan & Blower Motors (HVAC/R) SS103 - 1/45 HP - 115 V - 1550 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) SS103 - 1/45 HP - 115 V - 1550 RPM - Single phase

$89.00 CAD
$89.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS103

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/45 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower : 1/45
  • Amps : 0.90
  • Frequency : 60 Hz
  • Length : 2.34”
  • Enclosure : Totally Enclosed Construction
  • Shaft Dim. : Hubless
  • Type : Shaded Pole
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Feature(s) : Lyall Cord & Plug with 2 or 3 Bolt Mounting
  • Weight (lbs.) : 2
  • Reference : Electrohome 2818-541-028 2868-505-058 2868-505-071 2868-507-008 2868-507-009 2868-509-006 2868-509-015 2868-507-008 2878-507-009 SM103 SM104, Franklin Bluffton 76103 8213217229 8213517069 8213517369 8213517439 8213717009 8213717079, AK41214J AK4H135A AK4H1353J AK4H136J AK4H138J AK4K158A, MacMillan 8213515009 8213515042 8213515087, Rotom R103, Universal Electric AA2M5656
