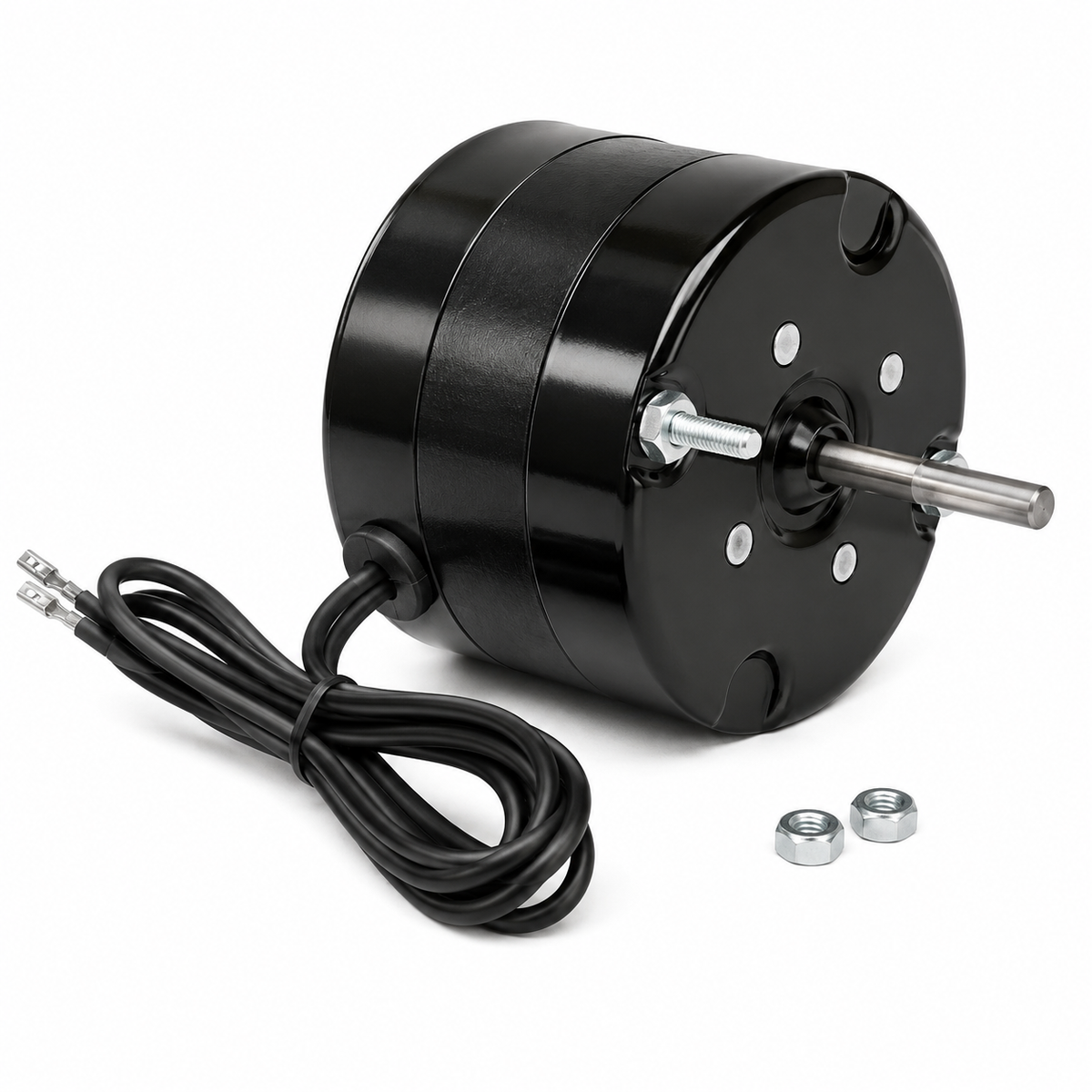

Rotom OEM Replacement Motors (HVAC/R) R206 - 1/80 HP - 115 V - 1550 RPM - Single phase

Rotom OEM Replacement Motors (HVAC/R) R206 - 1/80 HP - 115 V - 1550 RPM - Single phase

$129.00 CAD
$129.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : R206

Brand : Rotom

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/80 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Type : Shaded Pole
  • HP : 1/80
  • Voltage : 115
  • RPM : 1550
  • Current (Amp) : 0.56
  • Phase : 1
  • Rotation : Clockwise
  • Frame : 3.3
  • Enclosure : Totally Enclosed
  • Speeds : 2
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 1.5 in X 0.250 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 2.09 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Reference : 07779800000307, 14420, 2818410553, 2818410569, 2818410823, 2868405005, 2868405018, 2868405041, 2868405050, 2868405058, 2868405086, 2868405137, 2868405147, 2868407054, 2868505029, 2868505118, 2868807001, 71730845, 76202, 76206, 8213217881, 8223215123, 8223217081, 8363210130, AK41181A, AK41207A, AK41260A, AK4H132A, HVA541, SM206, SS206
