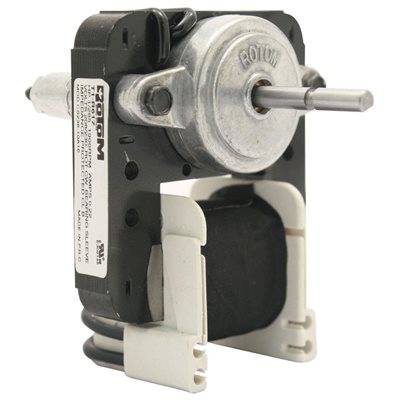

Rotom C Frame Motors (HVAC/R) T1-R617 - 1/285 HP - 208/230 V - 1900 RPM - Single phase

Rotom C Frame Motors (HVAC/R) T1-R617 - 1/285 HP - 208/230 V - 1900 RPM - Single phase

$62.00 CAD
$62.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T1-R617

Brand : Rotom

HVAC : C Frame Motors (HVAC/R)

Horsepower : 1/285 HP

RPM : 1900

Voltage : 115 V

Phase : Single

Frame : Skeleton

Mounting : C Frame Mount

  • Type : Shaded Pole
  • HP : 1/285
  • Voltage : 208-230
  • RPM : 1900
  • Current (Amp) : 0.22
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : Skeleton
  • Enclosure : Ouvert
  • Speeds : 1
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.181 in X 1.1 in
  • Frequency : 60Hz
  • Diameter : N/A
  • Frame Length : 0.40 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A

  • Reference : 04290004, 0429004, 07779800000262, 12657004, 12657005, 2858103015, 2858103022, 2858103024, 2858103030, 2858103031, 2858103036, 2858103038, 2858103039, 2858103044, 2858103045, 2858103046, 2858104042, 2858104044, 2858105053, 2858108017, 2858205012, 5007T, 5018T, 5030T, 5036G, 71022623, A6407A3, C01692, EM692, L8225582, R607, SM607, SS617, Stelpro MO-001, RWF1502, YJ61-10A-0009
