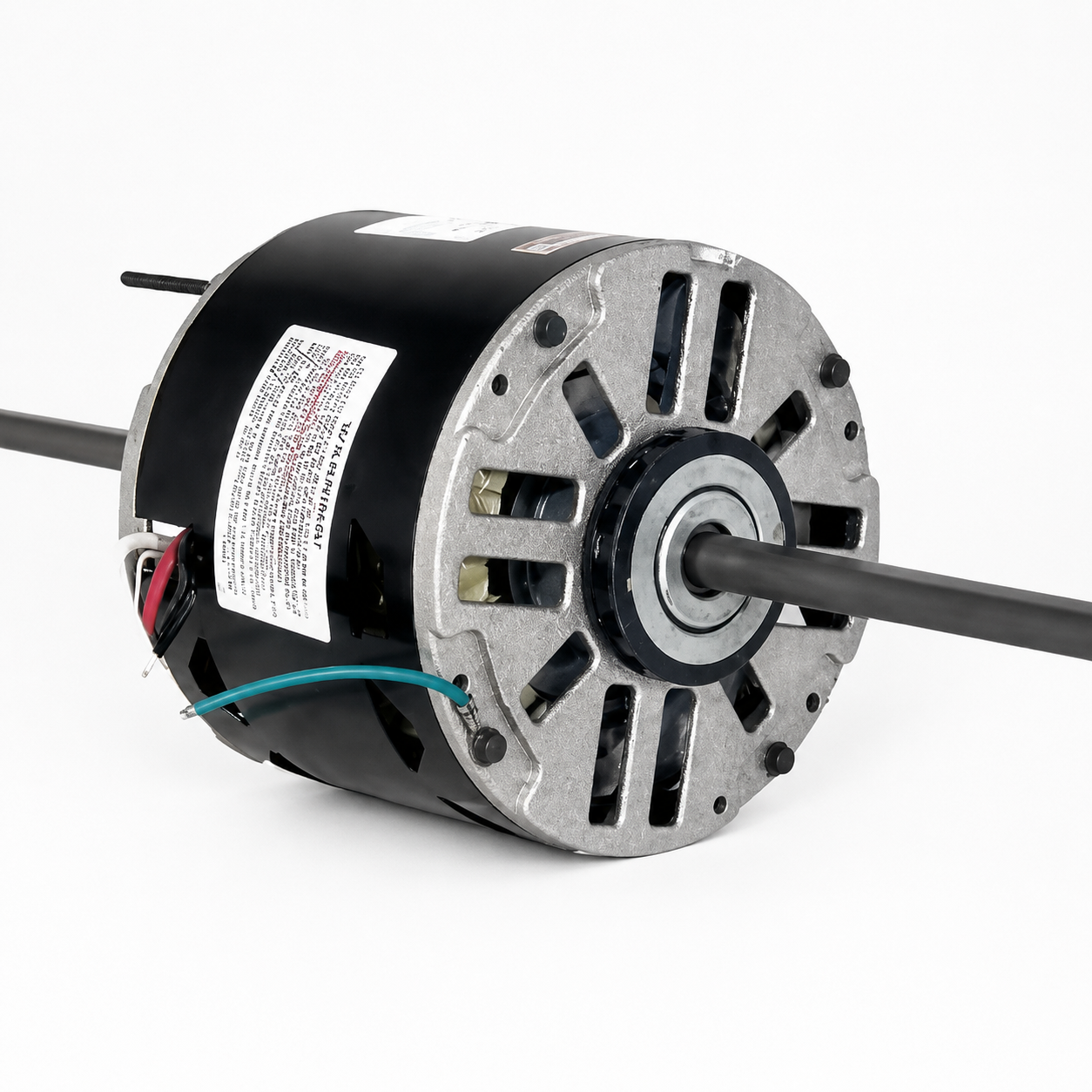

Century Condenser Fan Motors (HVAC/R) RAL1056 - 1/2 HP - 115 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) RAL1056 - 1/2 HP - 115 V - 1075 RPM - Single phase

$299.00 CAD
$299.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : RAL1056

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring / Stud

  • Model : RAL1056
  • Horsepower : 1/2 HP
  • Amps : 5.20
  • Frequency : 60 Hz
  • Length : 5-3/8"
  • "C" Dim. : 20"
  • Enclosure : Open Air Over (OAO)
  • Shaft Dim. : 7-3/8" x 1/2" x 7-1/4"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 10MFD/370V
  • Feature(s) : Class 'A' Insulation, No Base, Mounting accessories packaged with motor
  • Weight (lbs.) : 20
  • RAL1056 fan coil motor designed for HVAC fan coil units and air handler systems requiring a reliable 1/2 HP 115V 3-speed motor.
