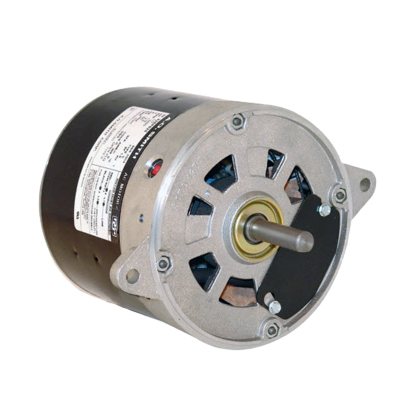

Century Oil Burner Motor (HVAC/R) OL2032 - 1/3 HP - 115/230 V - 3450 RPM - Single phase

Century Oil Burner Motor (HVAC/R) OL2032 - 1/3 HP - 115/230 V - 3450 RPM - Single phase

$359.00 CAD
$359.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : OL2032

Brand : Century

HVAC : Oil Burner Motor (HVAC/R)

Horsepower : 1/3 HP

RPM : 3450

Voltage : 115/230 V

Phase : Single

Frame : 48N

Mounting : Flange Mount

  • Model : OL2032
  • Horsepower : 1/3 Hp
  • Amps : 4.2/2.1
  • Frequency : 60 Hz
  • Length : 6-23/32"
  • "C" Dim. : 8-21/32"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 1-13/16"
  • Type : Split Phase
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Manual
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, 12-1/4" leads, Open shaft end bracket
  • Weight (lbs.) : 18
  • Century OL2032 HVAC motor designed for blower and general ventilation applications requiring a reliable 1/3 HP 115/230V single phase motor.
