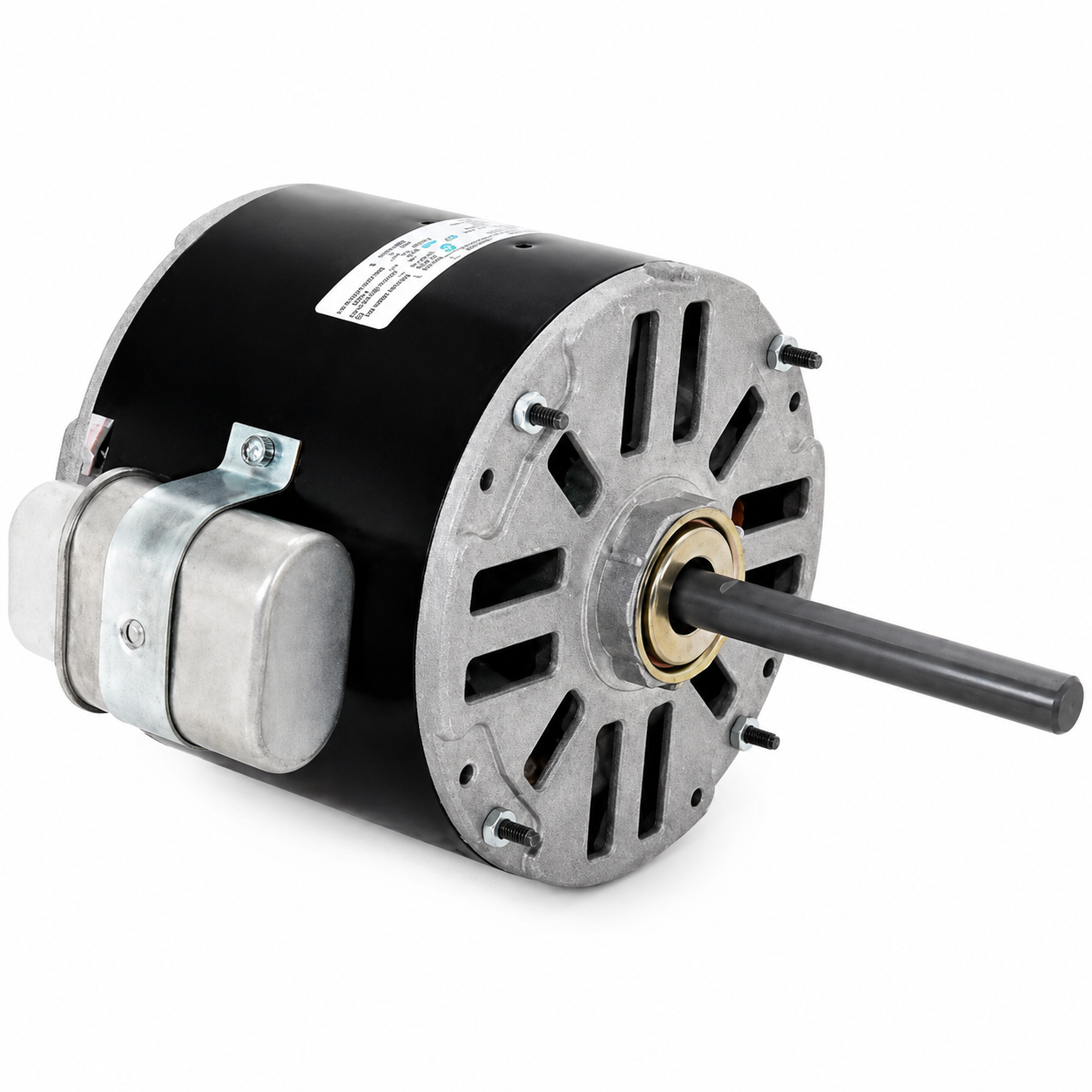

Century OEM Replacement Motors (HVAC/R) OHS10206 - 1/5 HP - 208/230 V - 1075 RPM - Single phase

Century OEM Replacement Motors (HVAC/R) OHS10206 - 1/5 HP - 208/230 V - 1075 RPM - Single phase

$500.00 CAD
$500.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : OHS10206

Brand : Century

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/5 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Model : OHS10206
  • Horsepower : 1/5 HP
  • Amps : 1.30
  • Frequency : 60 Hz
  • Enclosure : Open (ODP)
  • Shaft Dim. : 1/2" x 3.00"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD/370VAC
  • Feature(s) : Capacitor Included, Class 'B' Insulation
  • Weight (lbs.) : 12
  • Century OHS10206 HVAC motor designed for blower and ventilation applications requiring a reliable 1/5 HP 208-230V single phase motor.
