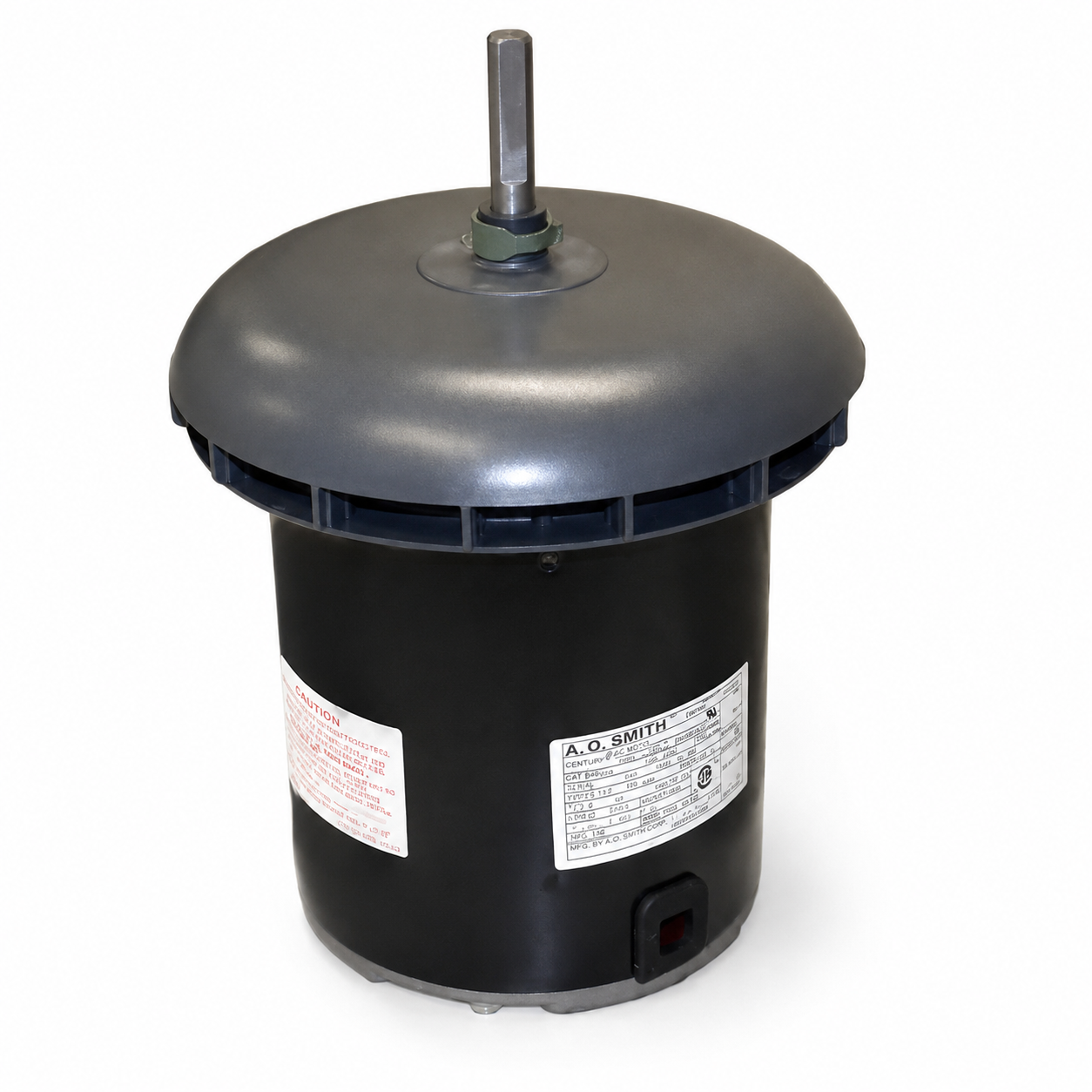

Century Condenser Fan Motors (HVAC/R) OAN747 - 3/4 HP - 460 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) OAN747 - 3/4 HP - 460 V - 1075 RPM - Single phase

$750.00 CAD
$750.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : OAN747

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 460 V

Phase : Single

Frame : 48Y

Mounting : Belly Band Mount

  • Model : OAN747
  • Horsepower : 3/4 HP
  • Amps : 2.00
  • Frequency : 60 Hz
  • Length : 7.11"
  • Enclosure : Semi-Enclosed
  • Shaft Dim. : 1/2" x 3-1/4"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 15MFD-370V
  • Feature(s) : Class 'B' Insulation, Band Mounting
  • Weight (lbs.) : 27
  • Century OAN747 HVAC motor designed for commercial and industrial ventilation and blower applications requiring a reliable 3/4 HP 460V single phase motor.
