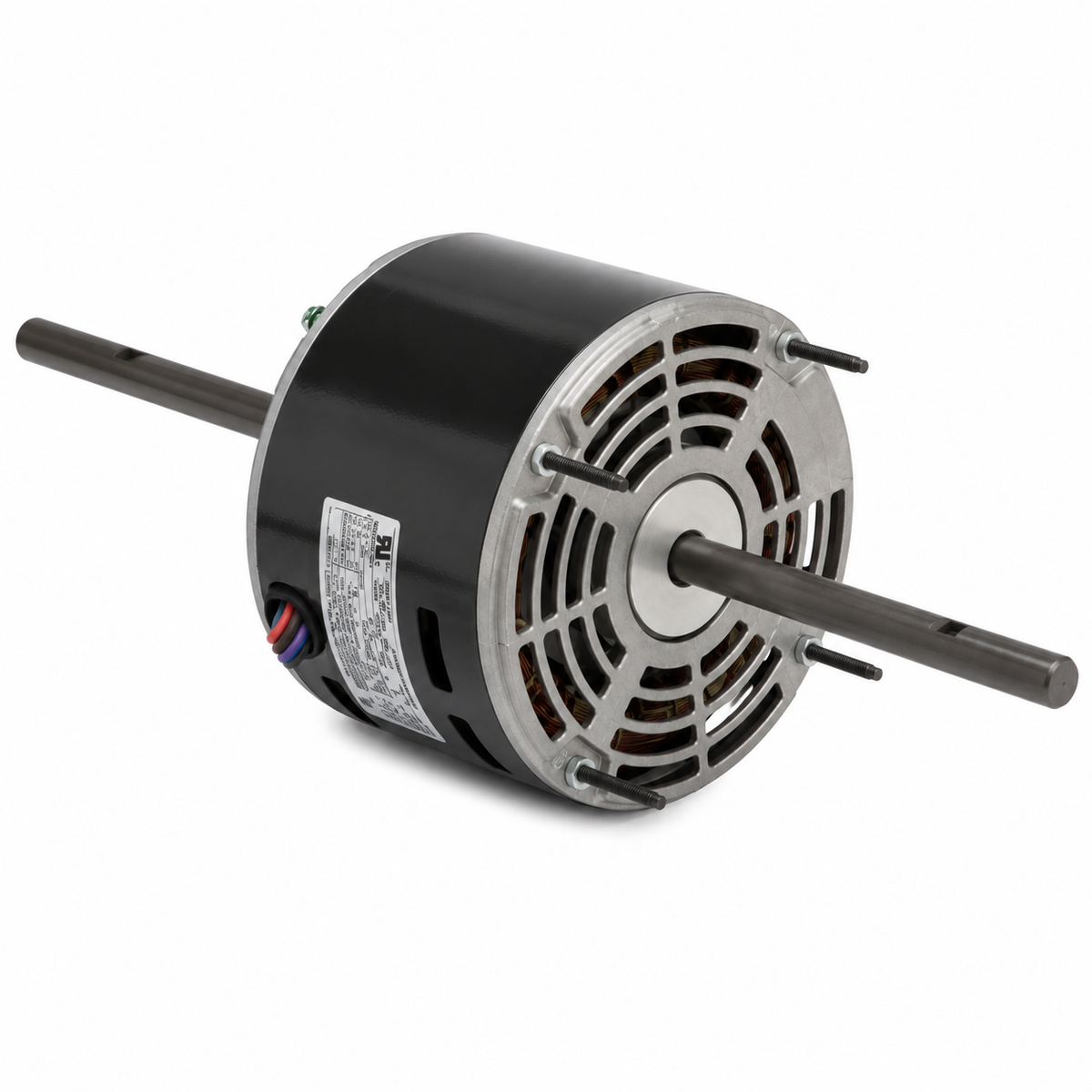

US Motors Fan Coil Motors (HVAC/R) NAL1056 - 1/2 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1056 - 1/2 HP - 115 V - 1075 RPM - Single phase

$279.00 CAD
$279.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : NAL1056

Brand : US Motors

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Hub / Stud Mount

  • Horsepower : 1/2
  • Amps : 7.3
  • "C" Dim. : 22.0"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 8.1" X 1/2" X 8.1"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 10MFD-370V
  • Feature(s) : Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) : 16
  • Référence : Century RAL1056, Century 594A, Dayton 4MA77, Emerson K55HXRHE2140, Fasco D761, GE 3691, Marathon X071
