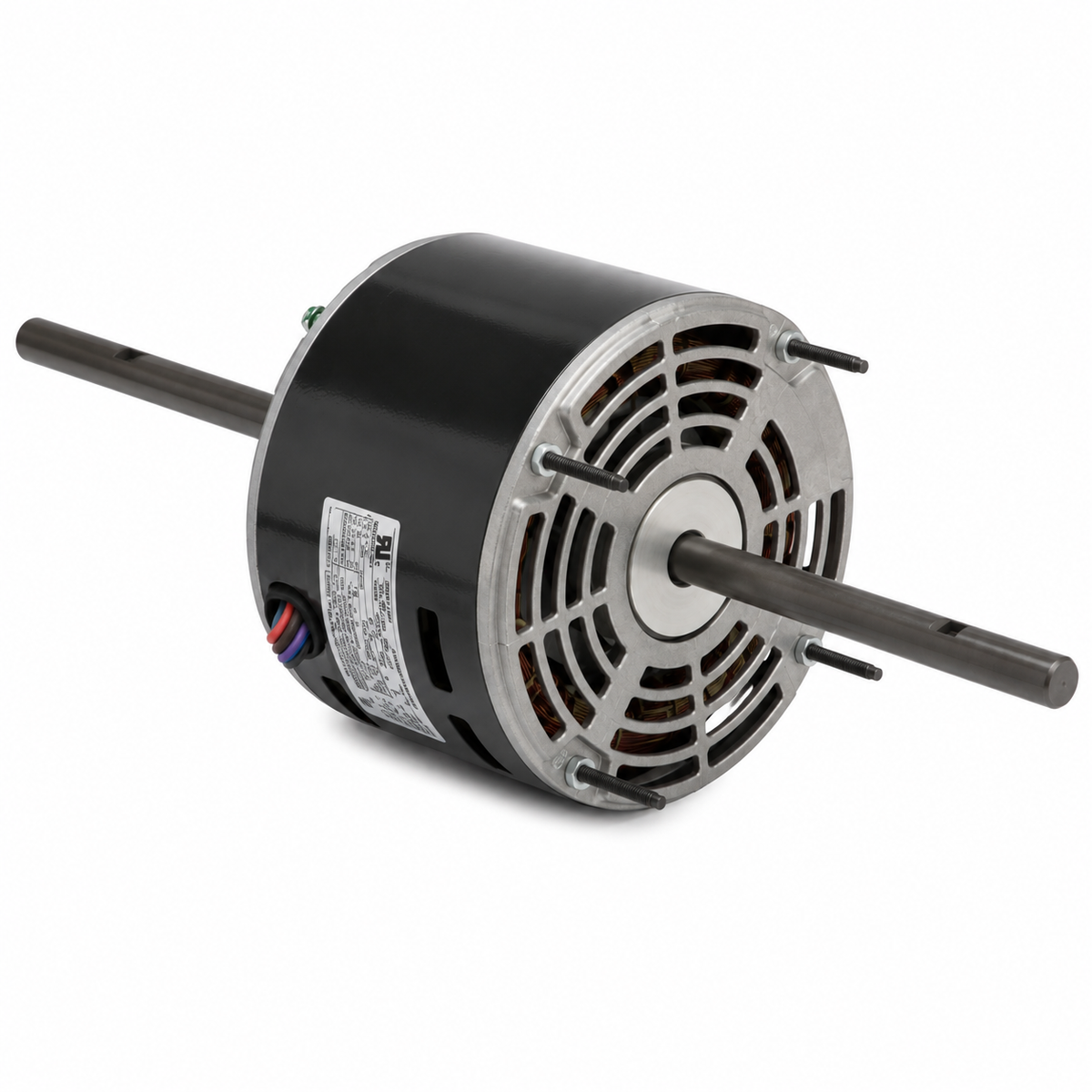

US Motors Fan Coil Motors (HVAC/R) NA1026 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1026 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

$241.00 CAD
$241.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : NA1026

Brand : US Motors

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Hub / Stud Mount

  • Horsepower : 1/4
  • Amps : 1.9
  • "C" Dim. : 22.0"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 9.0" X 1/2" X 9.0"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Self Aligning Bearings
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) : 11
  • Référence :  A.O. Smith 323P017, 323P282, 324P119, F48C13A02, F48E64A01, F48SD6MA33, F48SE6MA55, F48SE6MA6, F48SE6MA60, F48SE6MB17X1, F48SF6M2, F48SF6MA10, F48SF6MA15, F48SF6MA3, F48SFMA2, F48SG6L11, F48SG6L4, F48SG6MA11, F48SG6MA12, F48SG6MA17, F48SG6MA31, F48SG6MA49, A.O. Smith Stock No. SA1026, Carrier HC39CA228, HC39CA229, HC39CA230, HC39CA234, P257X044, Century RA1026, Dayton 3M614, 4MA73, Emerson K55HXDGF2219, K55HXFDA3275, K55HXMSM6597, K55HXRKV2201, K55XEDG2681, Emerson Catalogue No. 3134, Fasco 7126-0094, Fasco Catalogue No. D755, Franklin Bluffton 8726320171, 8726460131, 8745860120, 8745860190, 8745860191, 8745860231, 8746060131, 8746067501, 8746260241, General Electric 3672, 5KCP39CGA403, Marathon X044
