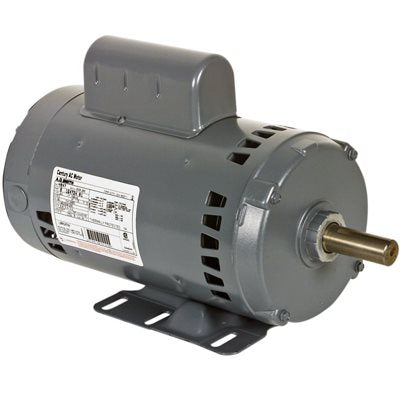

Century Fan & Blower Motors (HVAC/R) H956 - 1 HP - 575 V - 3450 RPM - Three phase

Century Fan & Blower Motors (HVAC/R) H956 - 1 HP - 575 V - 3450 RPM - Three phase

$953.00 CAD
$953.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H956

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1 HP

RPM : 3450

Voltage : 575 V

Phase : Three

Frame : 56HZ

Mounting : Rigid Base

  • Horsepower : 5
  • Amps : 5.40
  • Frequency : 60 Hz
  • "C" Dim. : 15-1/8"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 7/8" x 2-5/16"
  • Type : Three Phase
  • Speeds : 1
  • Diameter : 6-1/2"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.15
  • Ambient Temp. : 40°C
  • Feature(s) : Rigid Base, Class 'B' Insulation
  • Weight (lbs.) : 44
  • Reference : A.O. Smith 5BK3052, Century 165439, 176254, 181533, 5BK3502, Marathon 56T34D15567, F535256, Rotom T2170, P56R2T8B2
