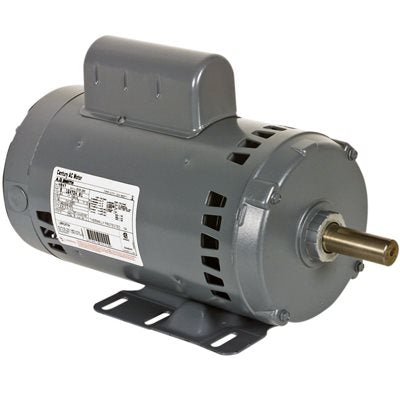

Century Fan & Blower Motors (HVAC/R) H847 - 5 HP - 208-230/460 V - 3450 RPM - Three phase

Century Fan & Blower Motors (HVAC/R) H847 - 5 HP - 208-230/460 V - 3450 RPM - Three phase

$998.00 CAD
$998.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H847

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 5 HP

RPM : 3450

Voltage : 208-230/460 V

Phase : Three

Frame : 56HZ

Mounting : Rigid Base


• Horsepower: 5 HP
• Voltage: 208-230/460 V
• Phase: 3
• Frequency: 60 Hz
• Amps: 13.40 / 13.20 / 6.60
• Enclosure: Open Drip Proof (ODP)
• Mounting: Rigid Base
• Shaft Diameter: 7/8" x 2-5/16"
• "C" Dimension: 15.10"
• Diameter: 6.5"
• Bearings: Ball
• Rotation: Reversible
• Protector: Automatic
• Service Factor: 1.15
• Ambient Temperature: 40°C
• Insulation Class: B
• Weight: 44 lbs

Reference  : Carrier HD60AZ660, Century 7-193814-02 164724, Marathon 56T34D903, Rotom T2168, McMillan MC024800V, Campbell Hausfeld Compatible Models
