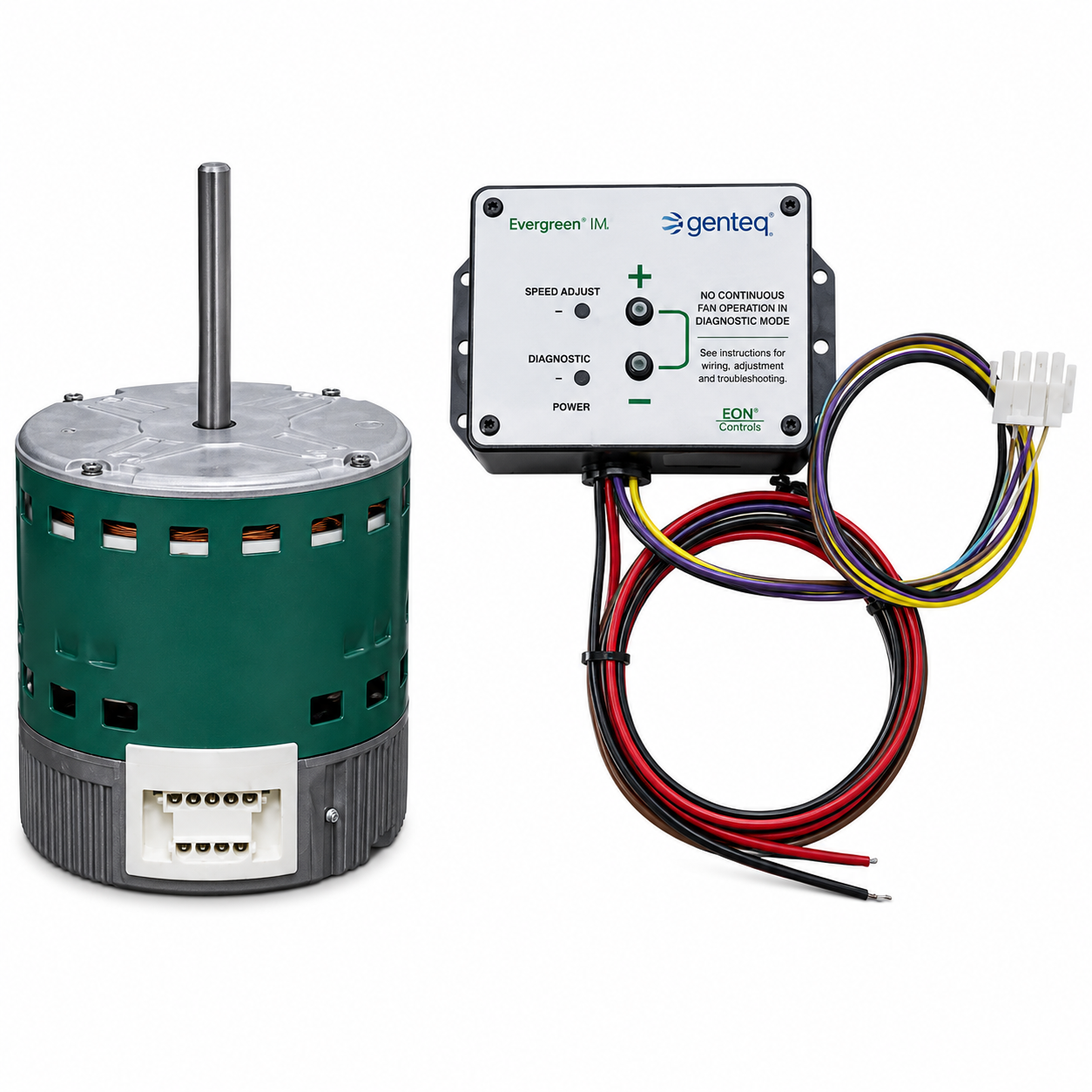

Genteq ECM Motors (HVAC/R) 6505VUI - 1/2 HP - 120/240 V - 1050 RPM - Single phase

Genteq ECM Motors (HVAC/R) 6505VUI - 1/2 HP - 120/240 V - 1050 RPM - Single phase

$768.00 CAD
$768.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 6505VUI

Brand : Genteq

HVAC : ECM Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1050

Voltage : 120/240 V

Phase : Single

Frame : 48

Mounting : Belly Band Mount

  • HP : 1/2
  • Voltage :120/240
  • Amps :7.7/4.3
  • RPM :1050
  • Frequency :60 Hz
  • "C" Dim. :11.21"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 5"
  • Type :Electronically Commutated
  • Speeds :1
  • Frame :48
  • Bearings :Ball
  • Rotation :CCW/CW
  • Protector :None
  • Service Factor :1.0
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Includes User Interface 5K010V
  • Weight (lbs.) :14
  • Reference :ECM2.0, ECM 2.0 ECM2.3, ECM 2.3 ECM3.0, ECM 3.0
