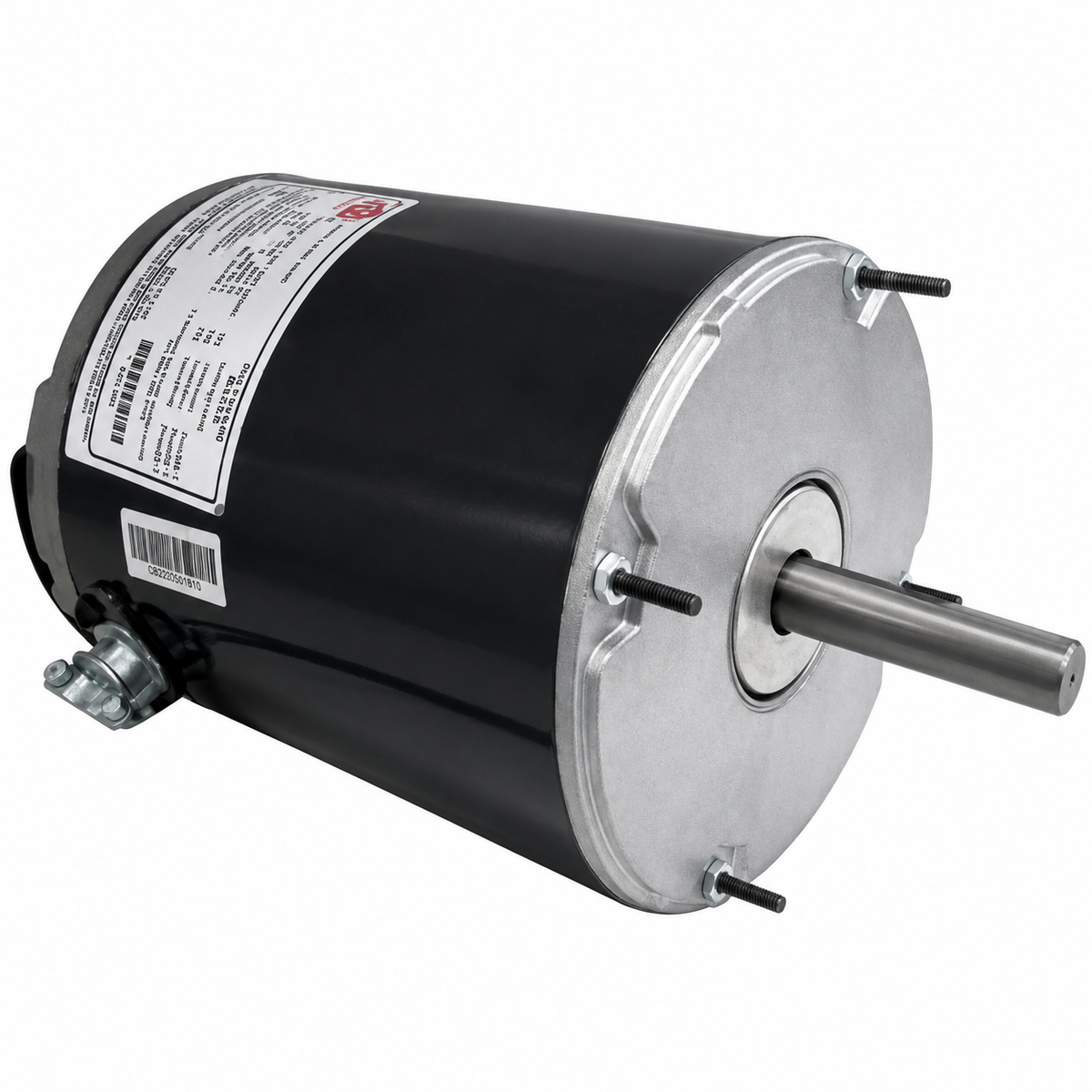

US Motors OEM Replacement Motors (HVAC/R) G004U - 1/4 HP - 575 V - 1140 RPM - Three phase

• Model: G004U
• Horsepower: 1/4 HP
• Voltage: 575 V
• Phase: 3
• Frequency: 60 Hz
• Amps: 0.50
• Speed: 1140 RPM
• Speeds: 1
• Enclosure: Totally Enclosed Air Over (TEAO)
• Mounting: Stud Mount (No Base)
• Shaft Diameter: 5/8" x 2-7/8"
• Length: 6-7/8"
• "C" Dimension: 9-3/4"
• Diameter: 5-5/8"
• Bearings: Ball
• Rotation: Reversible
• Protection: Thermally Protected
• Service Factor: 1.00
• Ambient Temperature: 40°C
• Insulation Class: A
• Weight: 14 lbs

• Reference : A.O. Smith F48L66A50, Emerson P55ZZDF1530, P55ZZDGG1482, Emerson 1137, Keeprite 171065, Marathon 48T11T40, OmniDrive 648-482/27, Rotom R31065, SA70134, Universal Electric HM3G004
