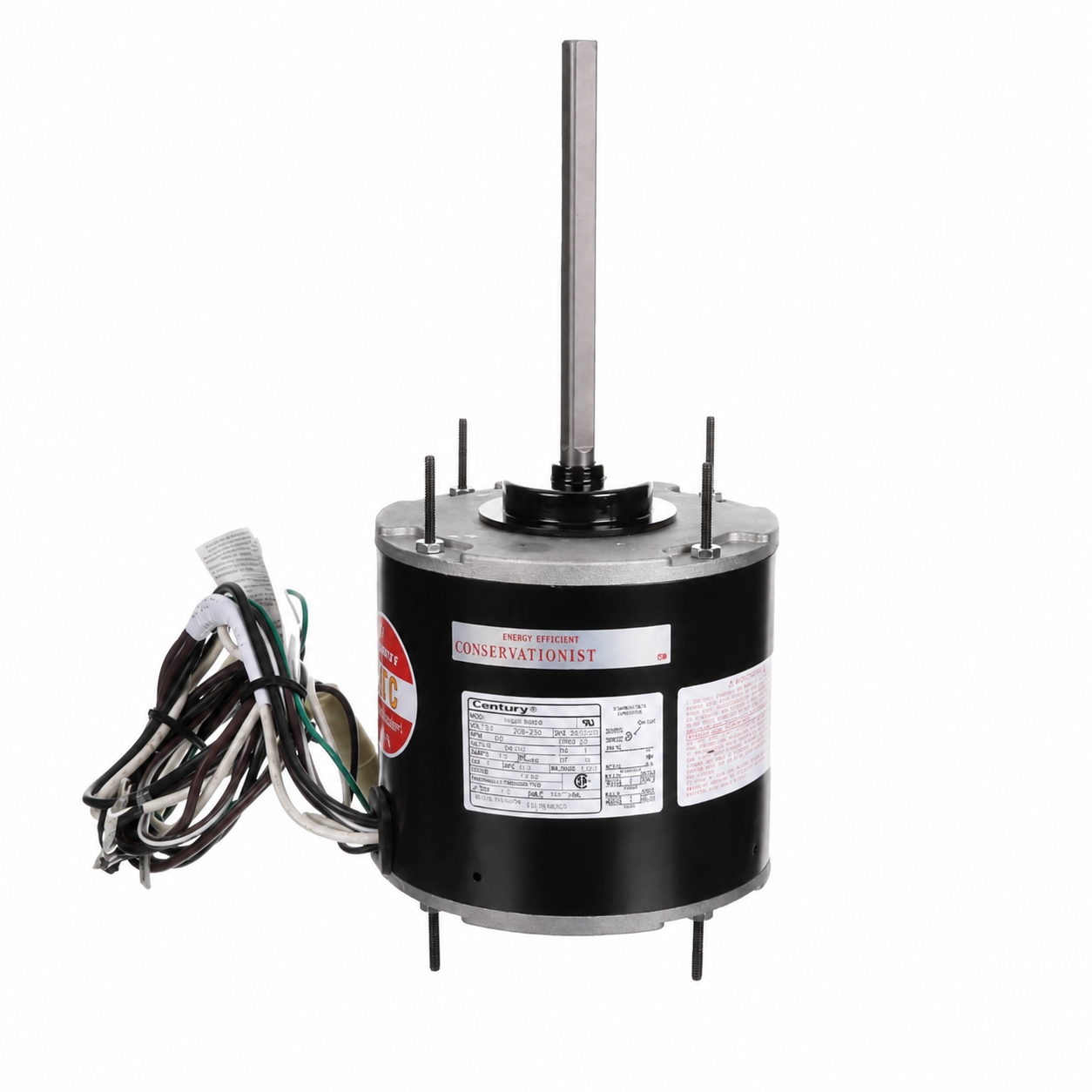

Century Condenser Fan Motors (HVAC/R) FE1038SF - 1/3 HP - 208-230 V - 1075 RPM - Single phase

Century FE1038SF HVAC replacement motor designed for fan, blower and ventilation applications. Built for reliable performance in residential and light commercial HVAC systems.

This 48 frame motor is ideal for replacing worn or failed units requiring consistent airflow and durability.

• Model: FE1038SF-B
• Horsepower: 1/3 HP
• Voltage: 208-230 V
• Frequency: 60 Hz
• Amps: 2.10
• Speed: 825 RPM
• Speeds: 1
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame: 48
• Shaft Diameter: 1/2" x 6-1/2"
• Length: 5-1/8"
• "C" Dimension: 11-5/8"
• Diameter: 5-5/8"
• Bearings: Ball
• Rotation: Reversible
• Protector: Automatic
• Service Factor: 1.00
• Ambient Temperature: 70°C
• Capacitor: 7.5 MFD / 370V
• Insulation Class: F
• Leads: 48"
• Weight: 15 lbs
