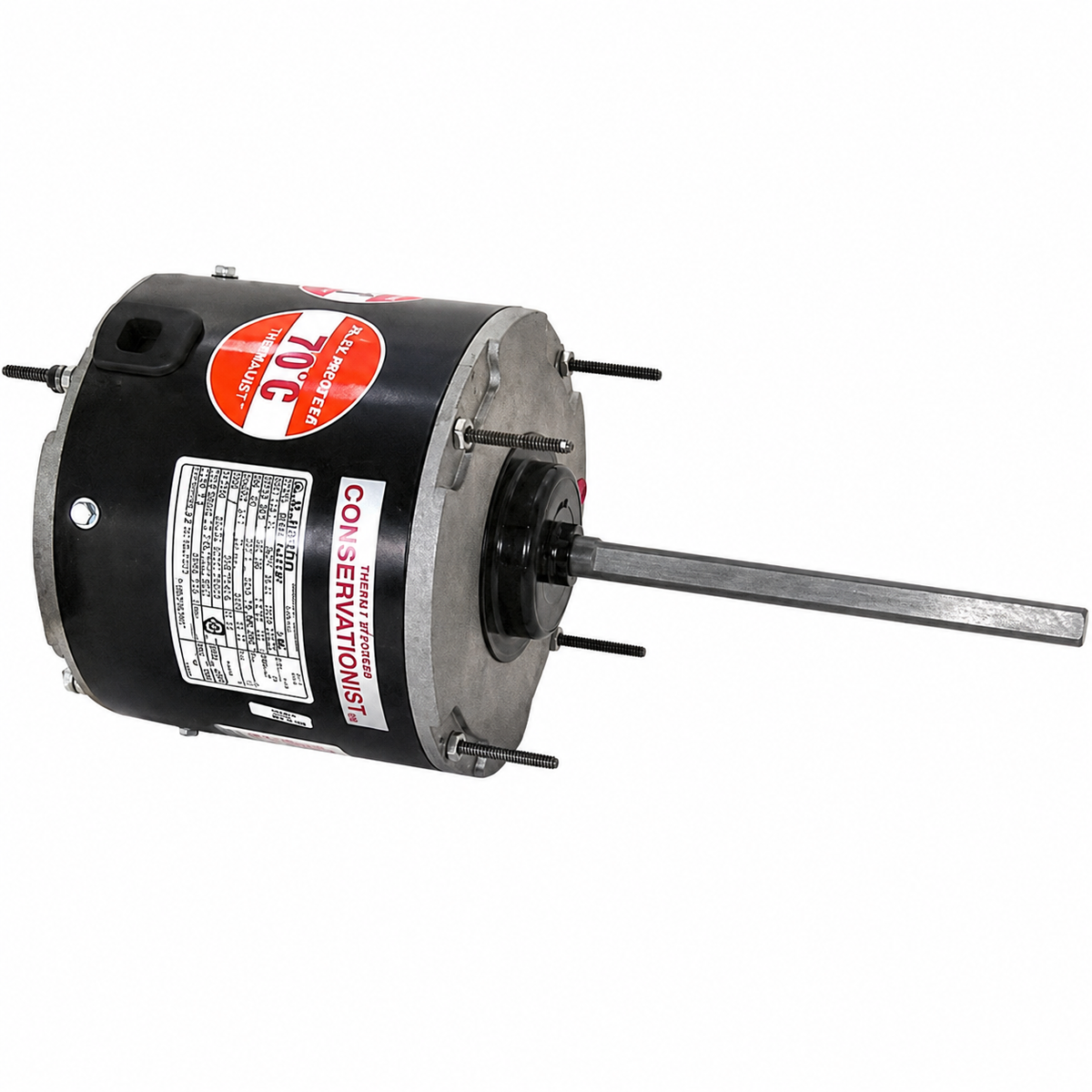

Century Condenser Fan Motors (HVAC/R) FE1036SC - 1/3 HP - 208-230 V - 1075 RPM - Single phase

Century FE1036SC HVAC replacement motor designed for fan, blower and air handler applications. Built for reliable performance in residential and light commercial systems.

This resilient mount motor is ideal for replacing worn or failed HVAC units requiring consistent airflow and durability.

• Horsepower: 1/3 HP
• Voltage: 208-230 V
• Frequency: 60 Hz
• Amps: 1.80 / 2.80
• Speed: 825 RPM
• Speeds: 2
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame: 48Y
• Mounting: Resilient Mount
• Shaft Diameter: 1/2" x 6"
• Length: 5-1/8"
• "C" Dimension: 11-1/8"
• Diameter: 5-5/8"
• Bearings: Ball
• Rotation: Reversible
• Protector: Automatic
• Service Factor: 1.00
• Ambient Temperature: 60°C
• Capacitor: 7.5 MFD / 370V
• Insulation Class: B
• Leads: 26"
• Weight: 16 lbs
• Reference : A.O. Smith F48AB21A01, F48AD54A01, SS3729, EM3729F, 3729F
