Century Fan & Blower Motors (HVAC/R) FDL1074 - 3/4 HP - 115 V - 1725 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FDL1074 - 3/4 HP - 115 V - 1725 RPM - Single phase

$390.00 CAD
$390.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FDL1074

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1725

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Extended Thru Bolt Mount

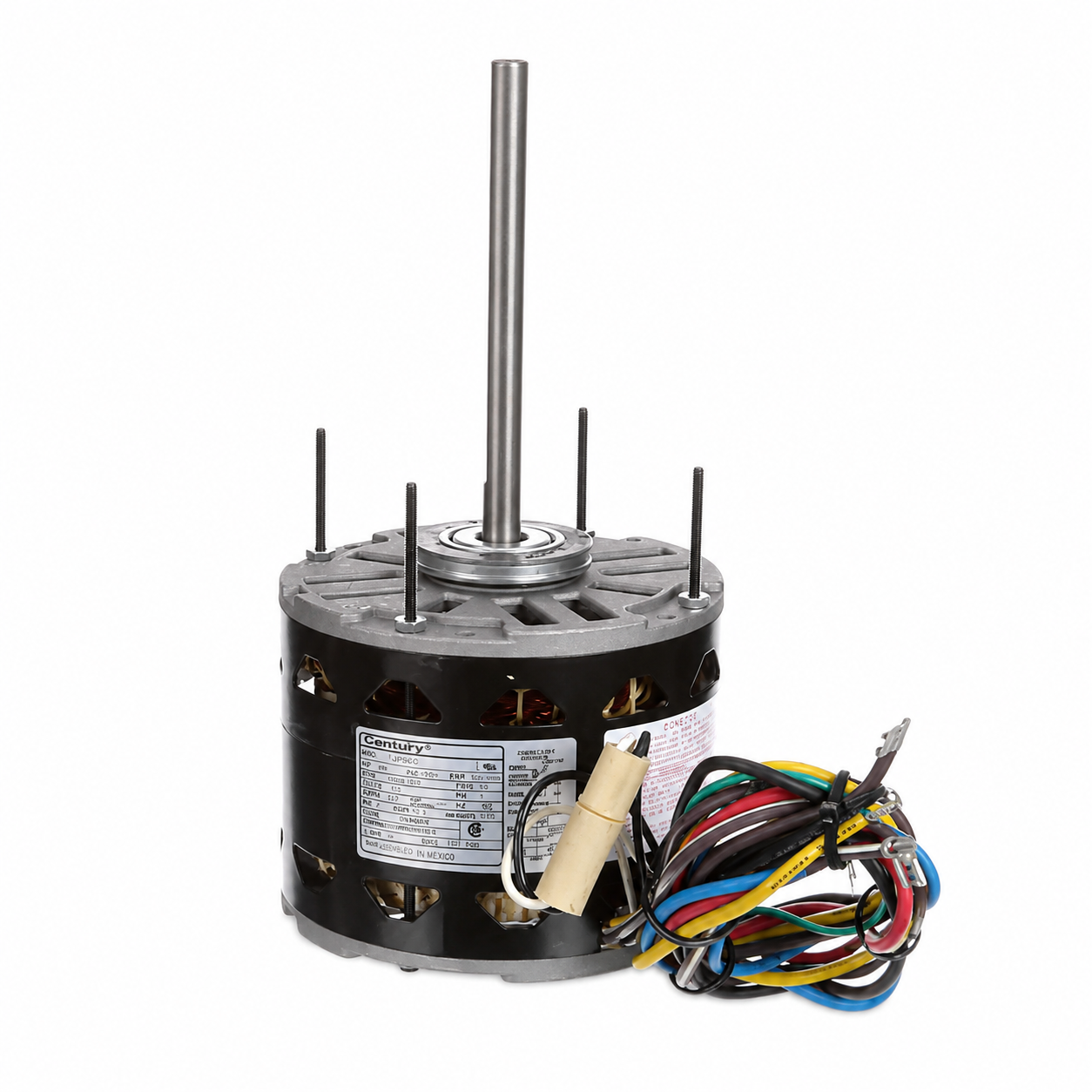

  • Century FDL1074 HVAC replacement motor designed for fan blower and air handler applications requiring a reliable 3/4 HP 115 V 1625 RPM motor.
  • Model : FDL1074
  • Horsepower : 3/4 HP
  • Speed : 1625 RPM
  • Voltage : 115 V
  • Amps : 8.50
  • Frequency : 60 Hz
  • Length : 5-5/8”
  • "C" Dim. : 12-1/16"
  • Enclosure : Open Air Over (OAO)
  • Shaft Dim. : 1/2" x 6-7/16"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 15MFD-370V
  • Features : Class 'B' Insulation, Resilient Mounting Rings  , Thru-Bolts
  • Weight (lbs.) : 19
