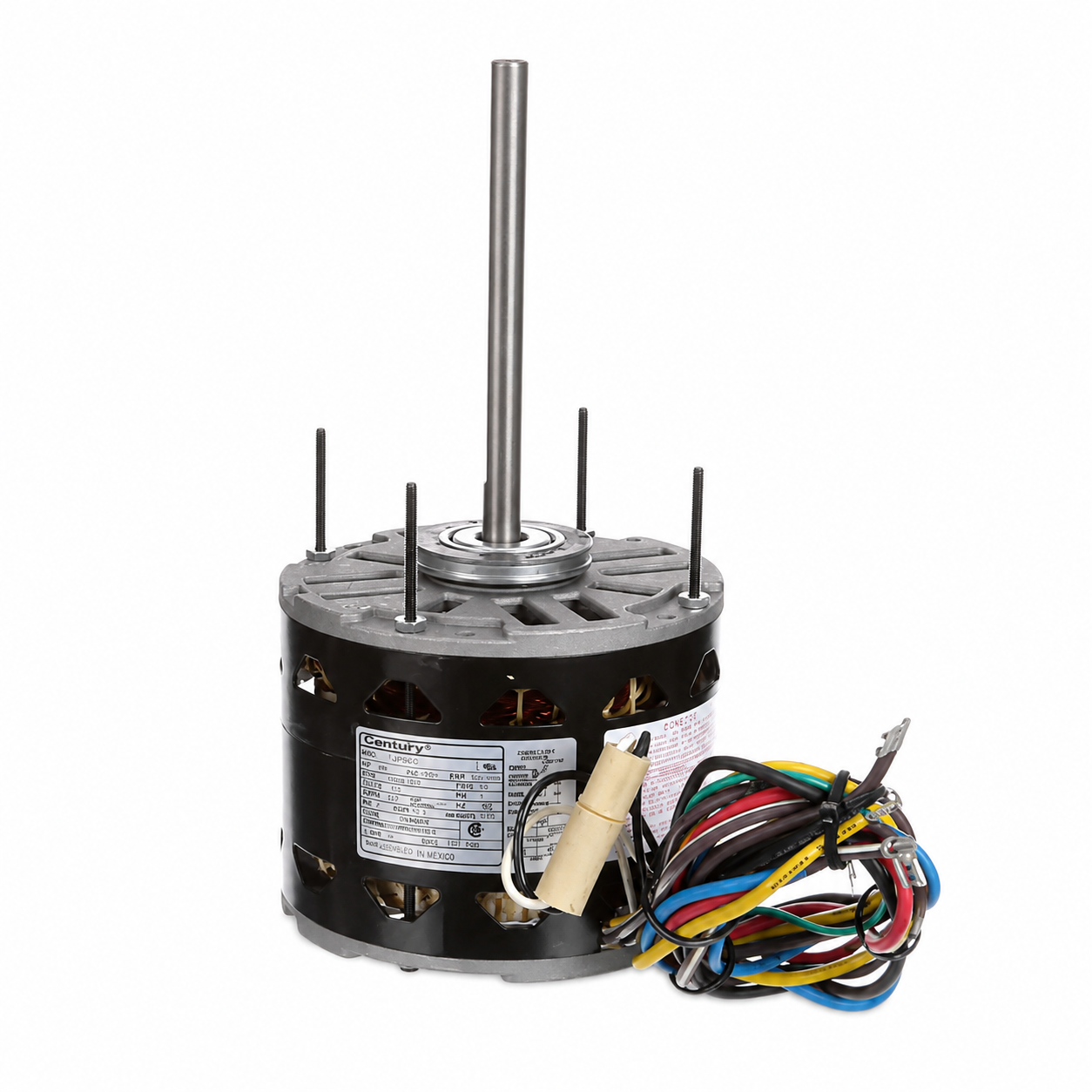

Century Fan & Blower Motors (HVAC/R) FDL1054 - 1/2 HP - 115 V - 1625 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FDL1054 - 1/2 HP - 115 V - 1625 RPM - Single phase

$358.00 CAD
$358.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FDL1054

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1625

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring Mount

  • Horsepower : 1/2
  • Amps : 7.60
  • Frequency : 60 Hz
  • Length : 5-1/8"
  • "C" Dim. : 11-9/16"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 6-7/16"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 15MFD/370V
  • Feature(s) : Class 'A' Insulation, Extended Thru-Bolts
  • Weight (lbs.) : 19
  • Référence : A.O. Smith 323P526, F48SN4L6, Dayton 3M898, 4M137, 4MA88, Emerson Catalogue No. 1694, Fasco 71234-0228, Fasco Catalogue No. D785, General Electric 5KCP39KGA718, 5KCP39MBE215, 5KCP39MGE215, General Electric Catalogue No. 3996, Marathon Catalogue No. X016, Universal Electric HE2H109, HE2L025, Universal Electric Stock No. 664, 3996, CPN 31676.
