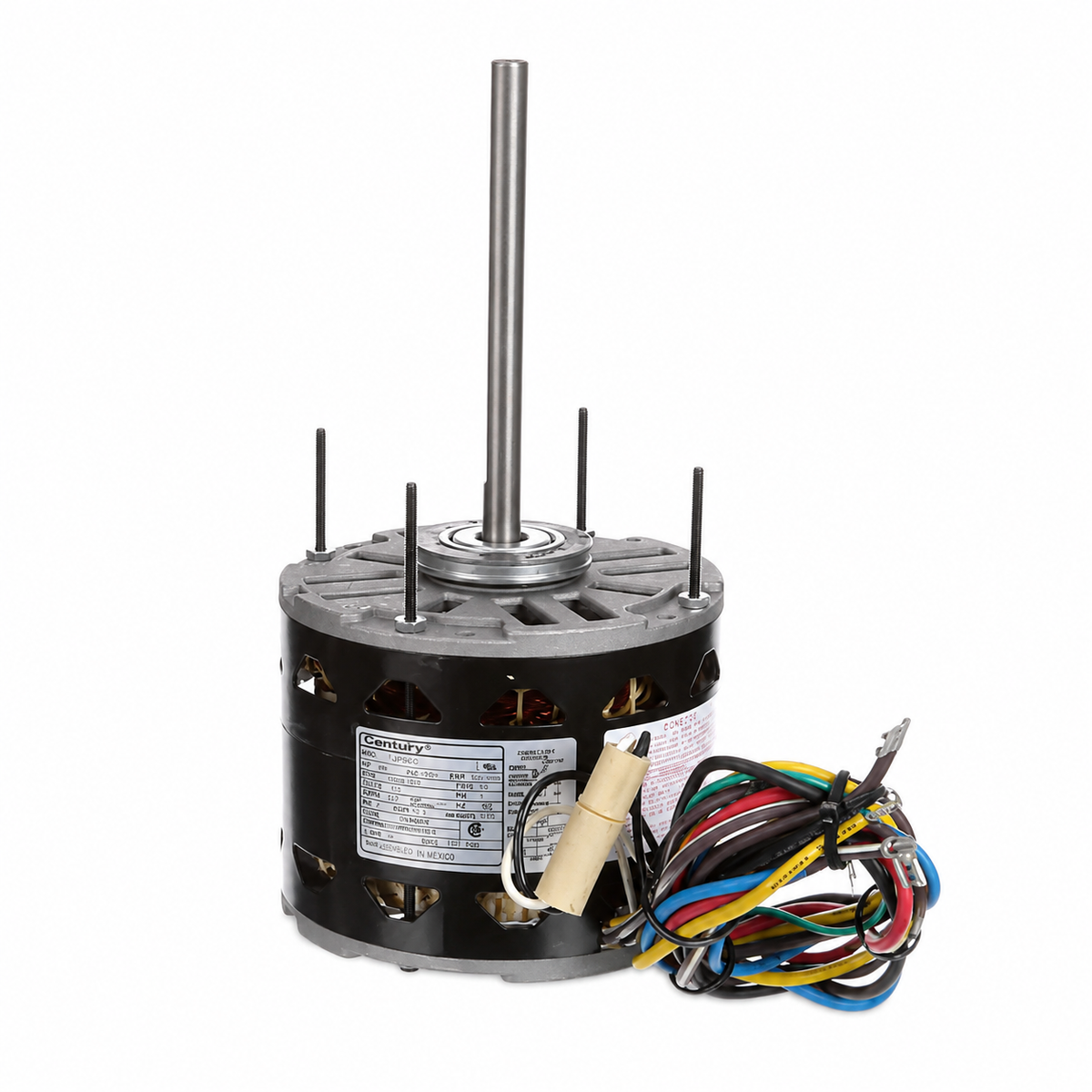

Century Fan & Blower Motors (HVAC/R) FDL1034 - 1/3 HP - 115 V - 1625 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FDL1034 - 1/3 HP - 115 V - 1625 RPM - Single phase

$301.00 CAD
$301.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FDL1034

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1625

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring Mount

  • Horsepower : 1/3
  • Amps : 4.00-6.20
  • Frequency : 60 Hz
  • Length : 4-5/8"
  • "C" Dim. : 11-1/16"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 6-7/16"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 15MFD/370V
  • Reference : A.O. Smith 32P524, F48SJ4L5, F48SL4MA8, Dayton 3M897, 4M135, 4MA84, Emerson 1692, Fasco 7124-0123, Fasco Catalogue No. D780, D782, Franklin Bluftton 8744210170, AY4725A, General Electric 3481, 3994, 3471, 5KCP39HGE213, 5KCP39MGC313, Marathon 48A170151, X015, Universal Electric HE2G003, HF2K011663
  • Feature(s) : Class 'A' Insulation, Thru-Bolts
  • Weight (lbs.) : 13
