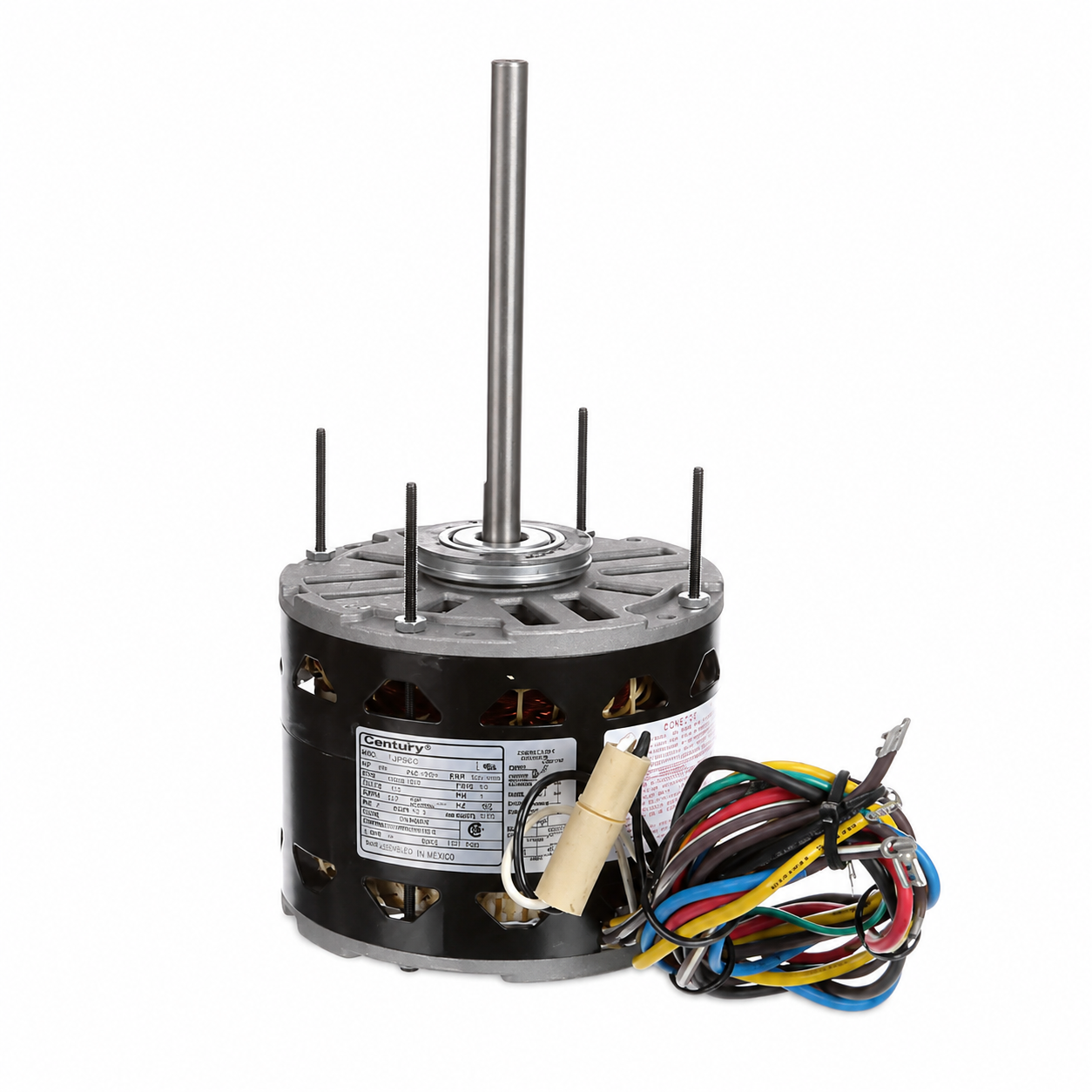

Century Fan & Blower Motors (HVAC/R) FDL1024 - 1/4 HP - 115 V - 1625 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FDL1024 - 1/4 HP - 115 V - 1625 RPM - Single phase

$258.00 CAD
$258.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FDL1024

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1625

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring Mount

  • Horsepower : 1/4
  • Amps : 3.00-5.00
  • Frequency : 60 Hz
  • Length : 4-3/8"
  • "C" Dim. : 10-3/4"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 6-7/16"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 10MFD/370V
  • Feature(s) : Class 'A' Insulation, Thru-Bolts
  • Weight (lbs.) : 12
  • Référence : A.O. Smith F48EA48A61, F48SG4L1, F48SG4L7, A.O. Smith Catalogue No. 9611, Dayton 3M896, 4M133, 4MA80, Emerson 1690, Marathon 48A17O152, 48S17D1211, Marathon Catalogue No. X013, Rotom R42416
