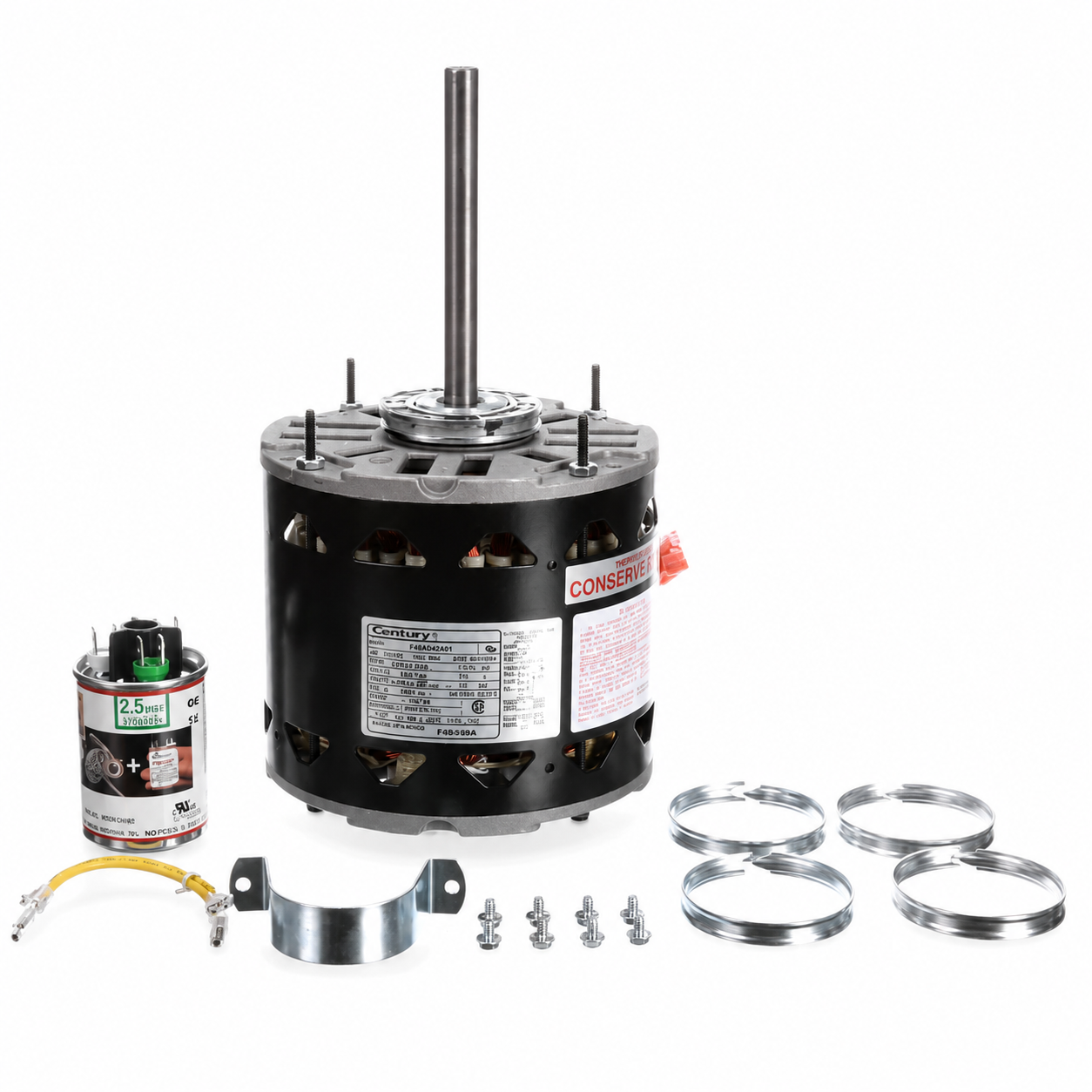

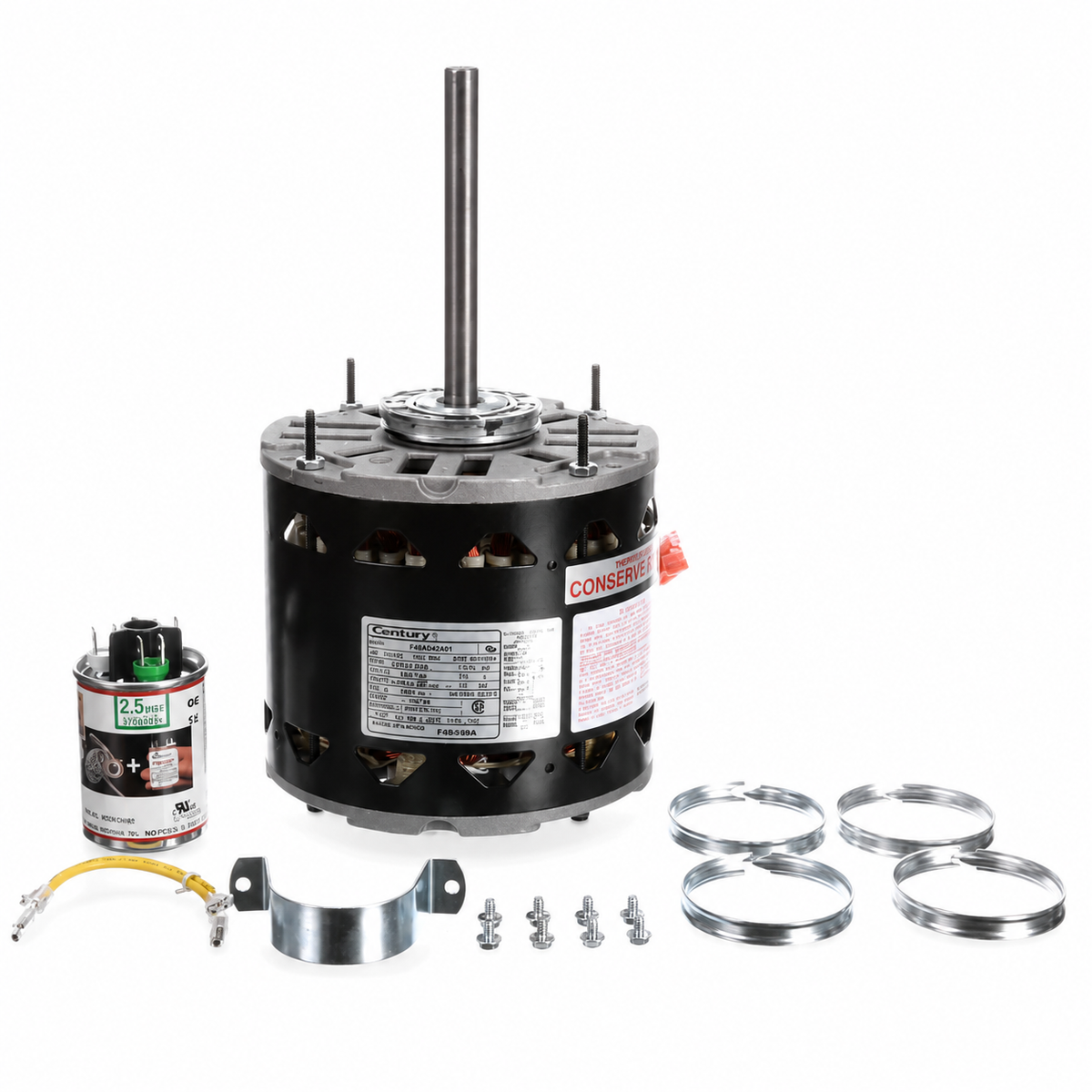

Century Fan & Blower Motors (HVAC/R) FD6000A - 1/2 HP - 208/230 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FD6000A - 1/2 HP - 208/230 V - 1075 RPM - Single phase

$220.00 CAD
$220.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FD6000A

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

  • Horsepower : 1/2
  • Amps : 3.90
  • Frequency : 60 Hz
  • Length : 4-7/8"
  • "C" Dim. : 9-7/8"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 1/2” x 5.00”
  • Type : Permanent Split Capacitor
  • Speeds : 4
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Extended Thru-Bolts, Rheem Mounting Holes In Shell, Class ‘B’ Insulation, Multi-Tap Capacitor Included, Resilient Rings, Energy Efficient
  • Weight (lbs.) : 16
  • Reference :Emerson K55HXKPR3346, Emerson Catalogue No. 5461, Universal Electric HE3J232, HF3H020
