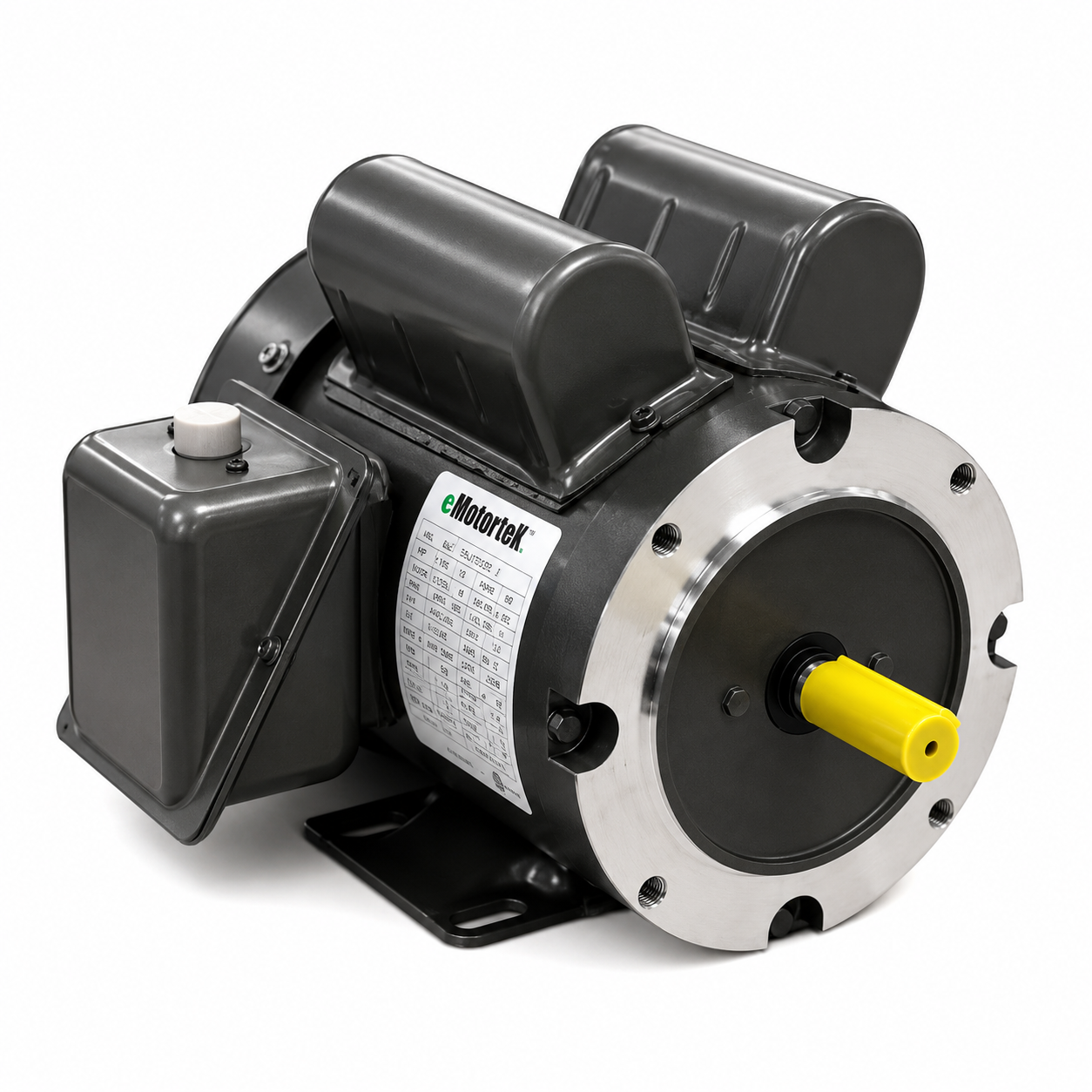

Emotortek General Purpose Farm Duty Motor EMF146C - 2 HP - 115/208-230 V - 3600 RPM - Single phase

Emotortek General Purpose Farm Duty Motor EMF146C - 2 HP - 115/208-230 V - 3600 RPM - Single phase

$298.00 CAD
$298.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EMF146C

Brand : Emotortek

HVAC : General Purpose Farm Duty Motor

Horsepower : 2 HP

RPM : 3600

Voltage : 115/208-230 V

Phase : Single

Frame : 56C

Mounting : Rigid Base Mount

  • Horsepower : 2
  • Amps : 16.20/8.40
  • Frequency : 60 Hz
  • "C" Dim. : 13-13/16"
  • Enclosure : Totally Enclosed Fan Cooled
  • Type : Capacitor Start / Run
  • Speeds : 1
  • Diameter : 6-1/2"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Manual Overload
  • Service Factor : 1.15
  • Ambient Temp. : 40°C
  • Feature(s) : Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base
  • Weight (lbs.) : 44
