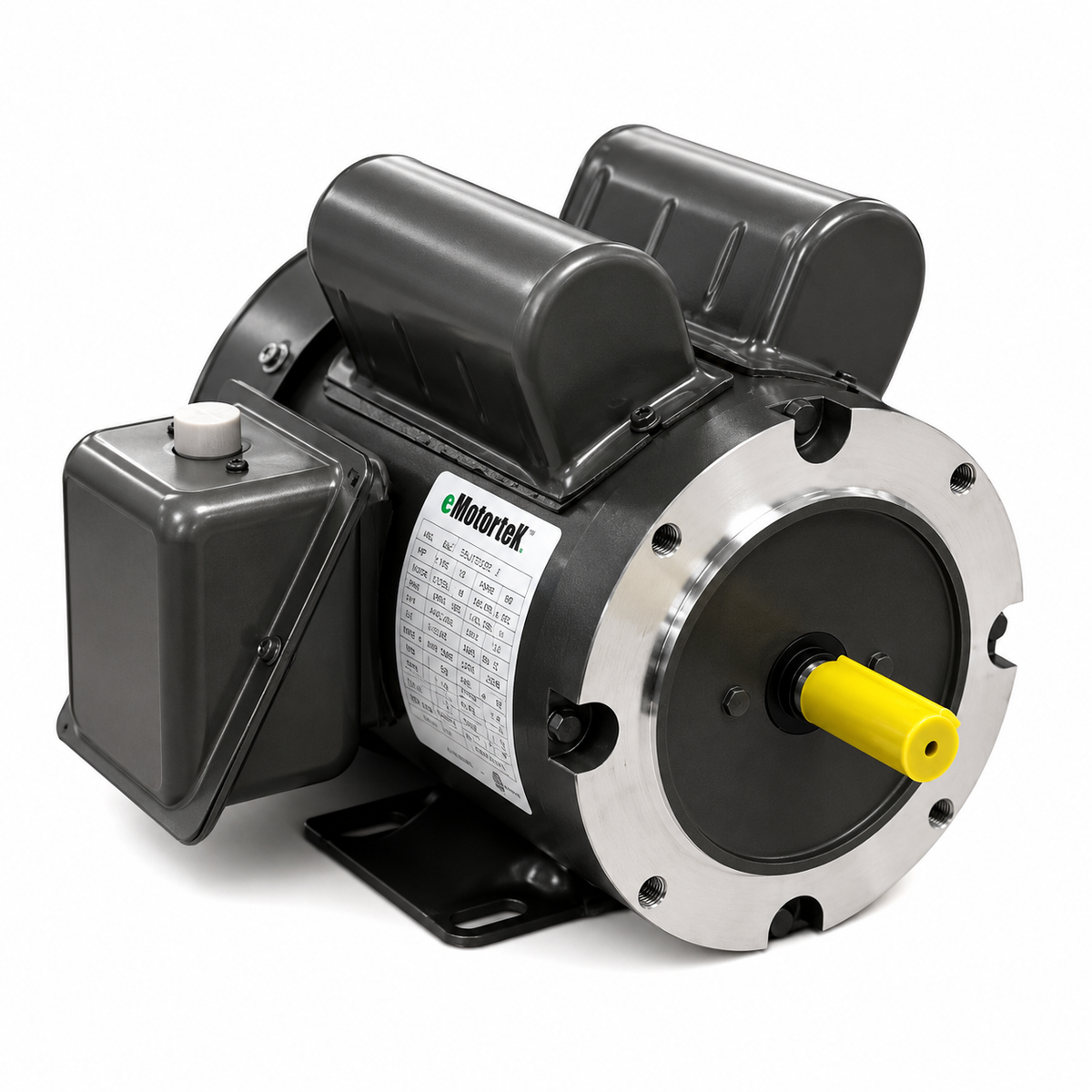

Emotortek General Purpose Farm Duty Motor EMF145C - 1.5 HP - 115/208-230 V - 3600 RPM - Single phase

Emotortek General Purpose Farm Duty Motor EMF145C - 1.5 HP - 115/208-230 V - 3600 RPM - Single phase

$219.00 USD
$219.00 USD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EMF145C

Brand : Emotortek

HVAC : General Purpose Farm Duty Motor

Horsepower : 1.5 HP

RPM : 3600

Voltage : 115/208-230 V

Phase : Single

Frame : 56C

Mounting : Rigid Base Mount

  • Horsepower : 1.5
  • Amps : 14.00/7.00
  • Frequency : 60 Hz
  • "C" Dim. : 12.00”
  • Enclosure : Totally Enclosed Fan Cooled
  • Type : Capacitor Start/Run
  • Diameter : 6-1/2"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Manual Overload
  • Service Factor : 1.15
  • Ambient Temp. : 40°C
  • Feature(s) : Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base
  • Weight (lbs.) : 37
