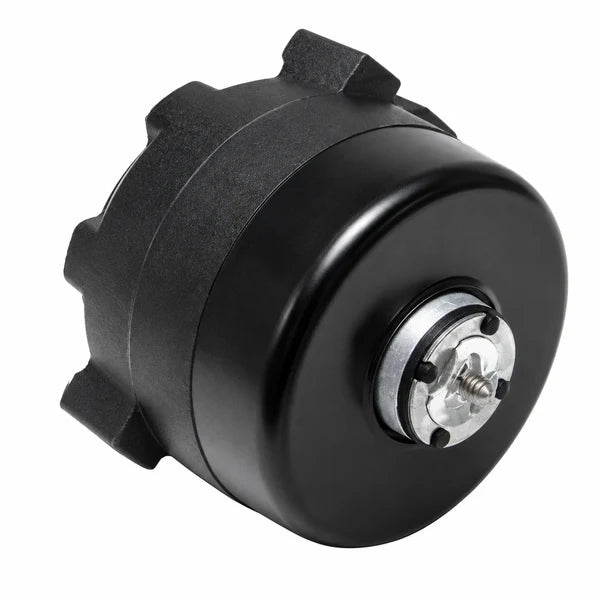

Fasco Unit Bearing Motors (HVAC/R) UB563 - 9 Watt - 115 V - 1550 RPM - Single phase

Fasco Unit Bearing Motors (HVAC/R) UB563 - 9 Watt - 115 V - 1550 RPM - Single phase

$74.00 CAD
$74.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : UB563

Brand : Fasco

HVAC : Unit Bearing Motors (HVAC/R)

Horsepower : 9 Watt

RPM : 1550

Voltage : 115 V

Phase : Single

Mounting : Hole Mount

• HP: 9W
• Voltage: 115
• RPM: 1550
• AMPs: 0.53
• Phase: 1
• Rotation: CWSE
• Frame: Unit Bearing
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1
• Shaft Dimensions: 1/4X20 X .415
• Frequency: 60Hz
• Diameter: 3.3"
• Length: 3.12"
• Bearings: Ball
• Features: CLASS B INSUL, 1/4X20 THREADED SHAFT, 28" LEADS WITH .05" STRIP, 2 MOUNTING FEET, 5 REAR MOUNTING HOLES
• Weight: 2 lbs
• Reference : 5412
