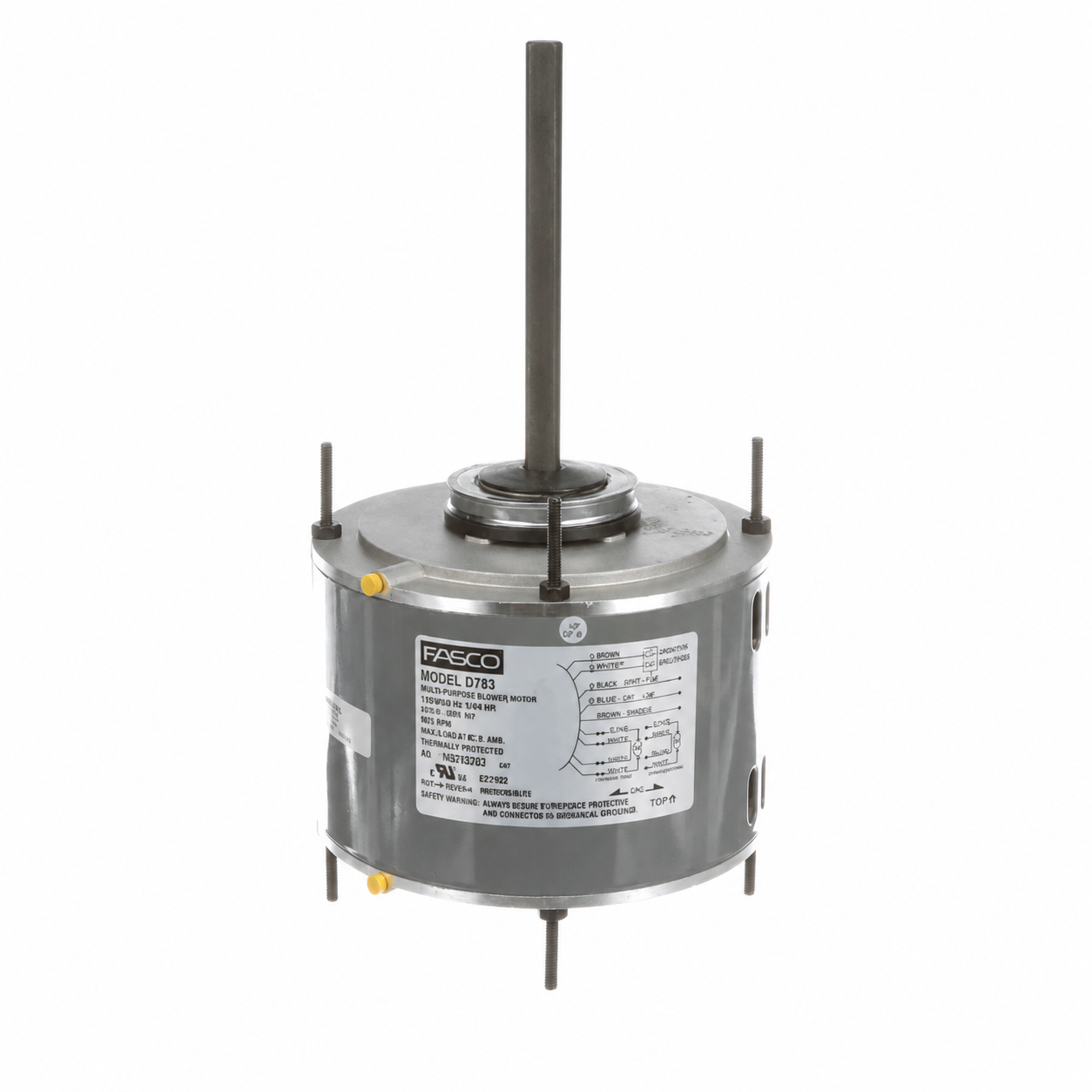

Fasco OEM Replacement Motors (HVAC/R) D783 - 1/4 HP - 208/230 V - 1625 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D783 - 1/4 HP - 208/230 V - 1625 RPM - Single phase

$324.00 CAD
$324.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D783

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

• HP: 1/4
• Voltage: 208-230
• RPM: 1625
• AMPs: 1.58
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: ODP
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1
• Shaft Dimensions: 1/2"X5.94"
• Frequency: 60Hz
• Diameter: 5-5/8"
• Length: 3.45"
• Bearings: Sleeve
• Features: CLASS B INSUL, 26" LEADS WITH .5" STRIP, EXTENDED STUDS ON BOTH ENDS, RESILIENT MOUNTING RING ON BOTH ENDS CAPACITOR NOT INCLUDED
• Weight: 11 lbs
• Copeland OEM Replacement Window Air Conditioning Condenser Fan and Direct Drive Blower Motor
• Reference : Century FS1024S OCP1024, Fasco 7124-0124 7124-0156, 873460110 8743660101, General Electric 5KCP39CG1578AS 5KCP39EG737S 5KCP39CD320S 5KSP39FG4771S 5KSP39FG477S, Universal Electric HE2E013N HE2F047N
